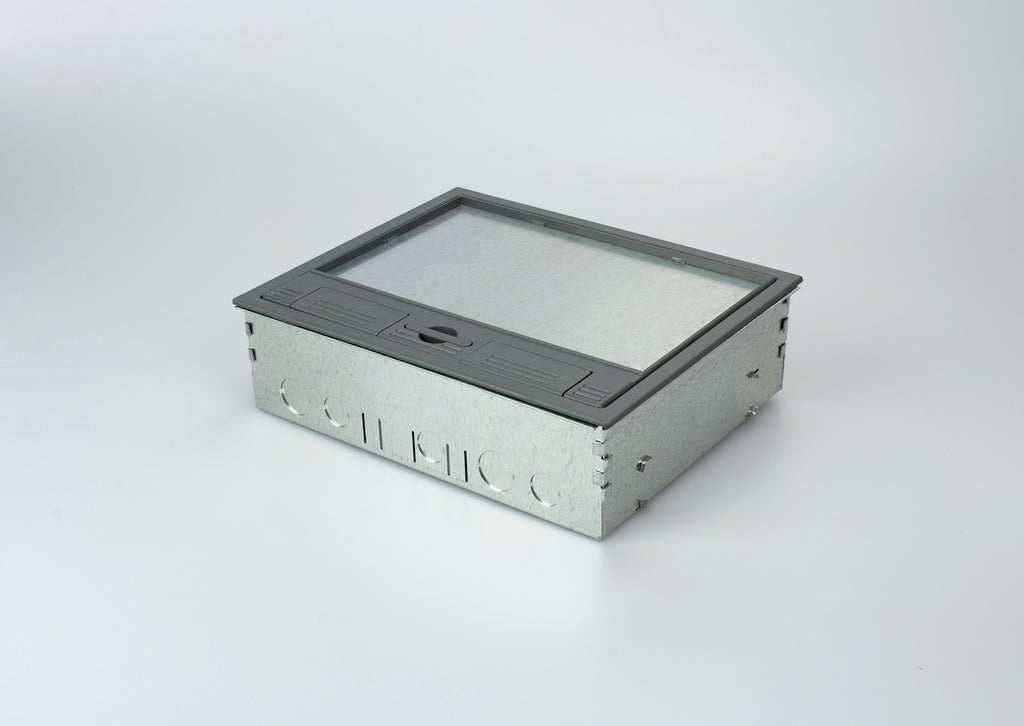

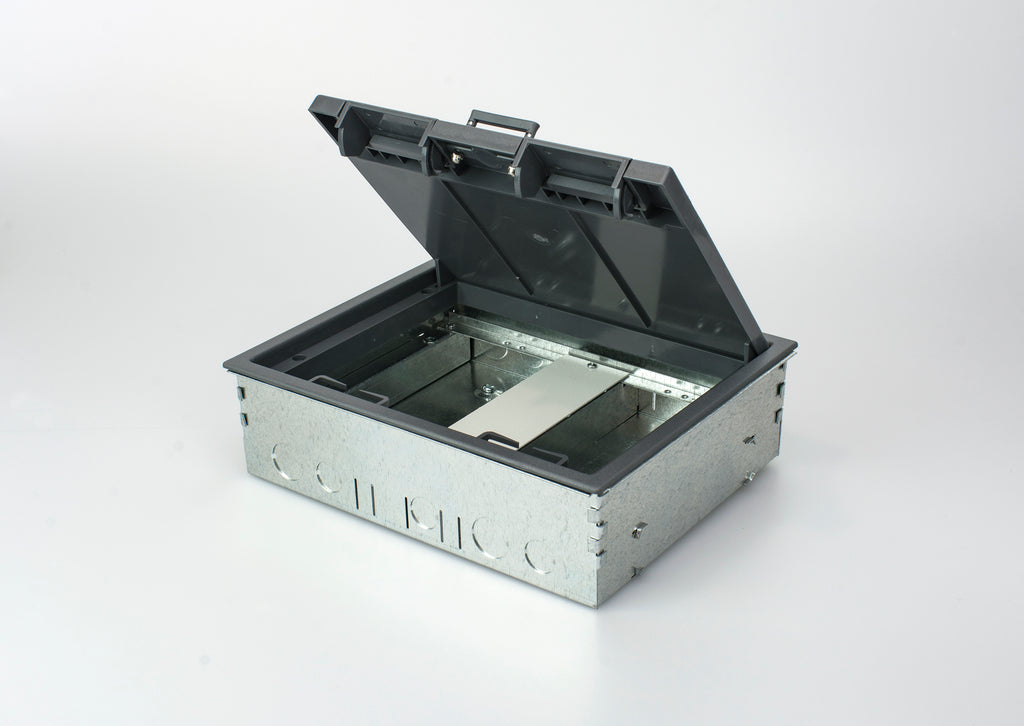

- Floor box manufactured from galvanised steel
- 25 & 20mm knockouts to accept flexible conduit
- Frame & lid moulded from high impact polycarbonate, colour equivalent: RAL7031
- Galvanised lid insert for strength
- Easy grip recessed lifting handle
- Compact design 266 x 212mm floor cut-out
- Designed to accept 2 accessory plates
- Large range of accessory plates, colour equivalent: RAL7035
- Special plates available to order
- Clean Earth Sockets available
- IP Rating: IP20
- ABS Frame & Lid fire rating UL94 HB Halogen Free
- Fire rating Euro Class E-F Class 4 None Tested
- ABS Plastic Frame & Lid Load Test 550 KG
- Steel Frame & Lid Load Test 740 KG
Customer Notice: Be advised that when installing ST0286 & ST0287 range of accessory plates the Plug Top wiring space is reduced. The 65mm & 75mm Screed boxes are not recommended for RCD sockets due to wiring compartment Depth. For RCD Sockets Please use the TSB2/80 (RCD) Screed box.
| Model: | TSB2/75 |
|---|---|
| Floor Cut Out: | 266mm x 212mm |
| Floor Box Depth: | 75mm |
| Plug Top Clearance: | 32mm |
| Overall Frame & Lid: | 272mm x 223mm |
| Frame Lid Recess: | 6mm |
| Accessory Plate: | 185mm x 89mm |
Accessory Plate Options
Highlighted plates are not recommended for this box depth.
 ST0283Blank Plate |
 ST02844 Way Data Plate |
 ST0284/W4 way Wave Data Plate |
 ST0286F2 x 1 Gang Accessory Plate |
 ST0286/1FMFlush 1 Gang Accessory Plate |
 ST0287FStandard Twin Accessory Plate |
 ST0287/FMFlush Twin Accessory Plate |
 ST02896 Way Data Plate |
 ST0291Twin Switched Sockets |
 ST02942 x 50mm Euro Module Plate |
 ST0295Triple Unswitched Sockets |
 ST0291/USBTwin Sockets with USB |
 ST0291/RCD/GBTwin RCD Protected Sockets |
 ST0287FM/RCDFlush Mounted Twin RCD Protected Sockets |
3 Compt (Compact) Frame & Lids Options
 ABSL6R296Replacement ABS Frame & Lid |
 PCL12R296Powder Coated Steel Frame & Lid |
 SSL12R296Stainless Steel Frame & Lid |
 SSL12R296-LLLockable Stainless Steel Frame & Lid |
