TFB4/64 Cavity Floorbox

Tass FloorboxSKU: TFB4/64
filler

Price:
£37.50(Ex. Vat)

Description

Description

Dimensions

Downloads

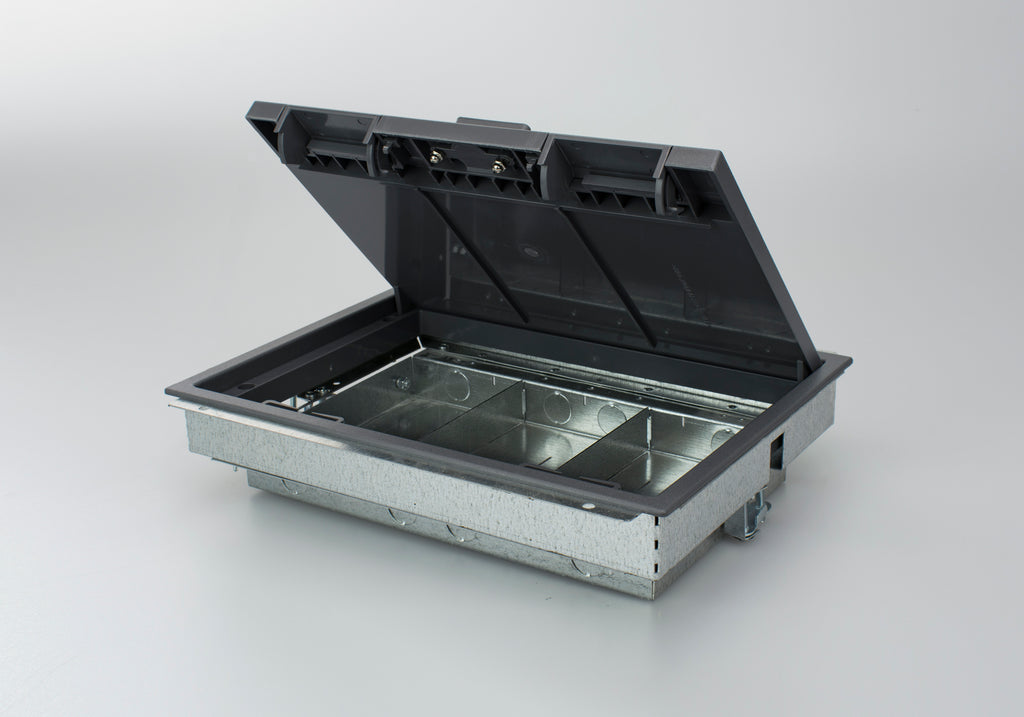

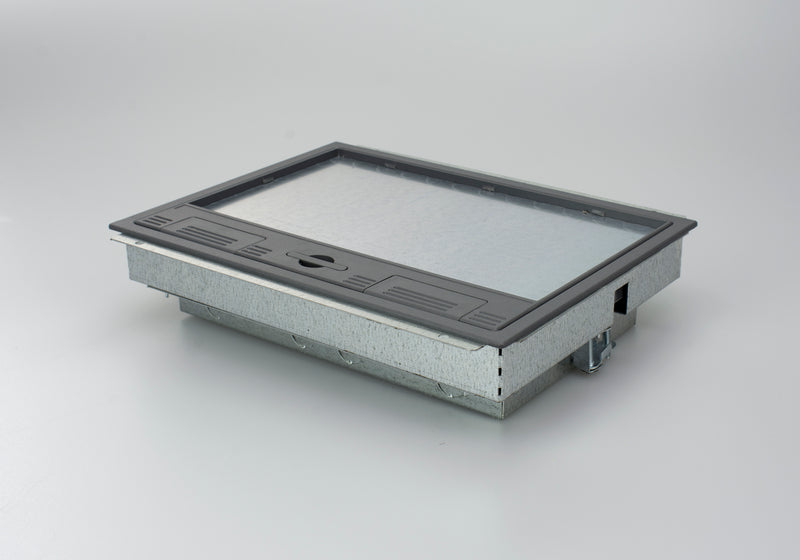

• Floor box manufactured from galvanised steel
20mm KNOCKOUTS ONLY to accept flexible conduit
• Frame & lid moulded from high impact polycarbonate (RAL7031)
• Galvanised lid insert for strength
• Easy grip recessed lifting handle
• Compact design 303mm x 221mm floor cut-out
• Clamp fixing for fast installation
• Large range of accessory plate, colour equivalent: RAL7035

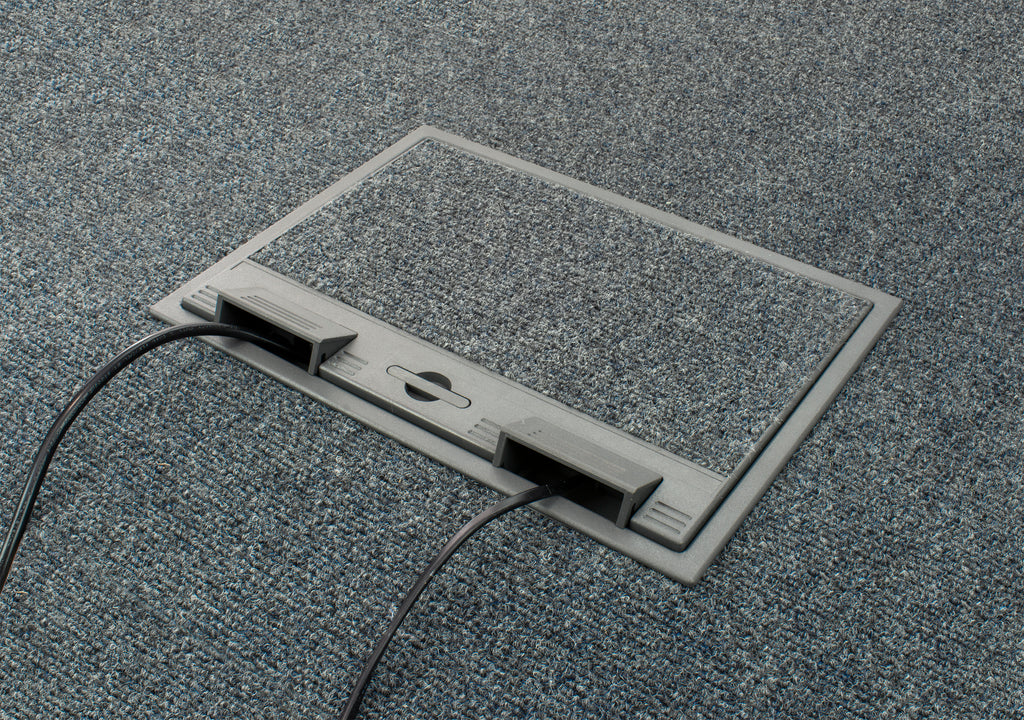

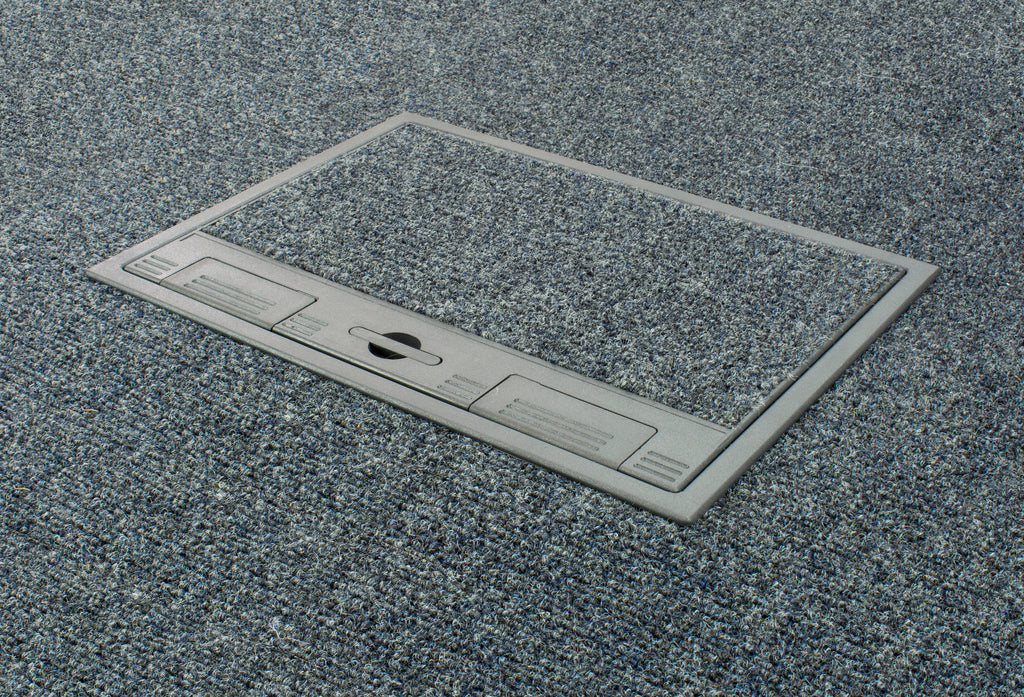

• Suitable for carpeted floors only with standard Frame & Lid
• Clean Earth Sockets available
• IP Rating: IP20
• ABS Frame & Lid fire rating UL94 HB Halogen Free
• Fire rating Euro Class E-F Class 4 None Tested
• ABS Plastic Frame & Lid Load Test 550 KG
• Steel Frame & Lid Load Test 740 KG

Note: The TFB4/64mm floor box has restrictive cabling capacity we strongly recommend the use of Side wired Sockets (ST0290/SW/RH & ST0290/SW/LH).

Model: TFB4/64
Floor Cut Out: 303mm x 221mm
Floor Box Depth: 64mm
Plug Top Clearance: 24mm
Overall Frame & Lid: 313mm x 230mm
Frame Lid Recess: 6mm
Accessory Plate: 185mm x 68mm

TFB4/64 Accessory Plate Options

ST0279ST0279
2 x Euro Module Plate
ST0280ST0280
6 Way Data Plate
ST0282ST0282
Blank Plate
ST0285ST0285
4 Way Data Plate
ST0285/WST0285/W
4 Way Data Wave Plate
ST0290/SW/RHST0290/SW/RH
Right-Hand Twin Switched Sockets (Side Wired)
ST0290/SW/LHST0290/SW/LH
Left-Hand Twin Switched Sockets (Side Wired)

Frame & Lids Options for TFB3/64 & TFB4/64

ABSL6R281ABSL6R281
Replacement ABS Frame & Lid
ABSL6R281-LLABSL6R281-LL
Lockable ABS Frame & Lid
