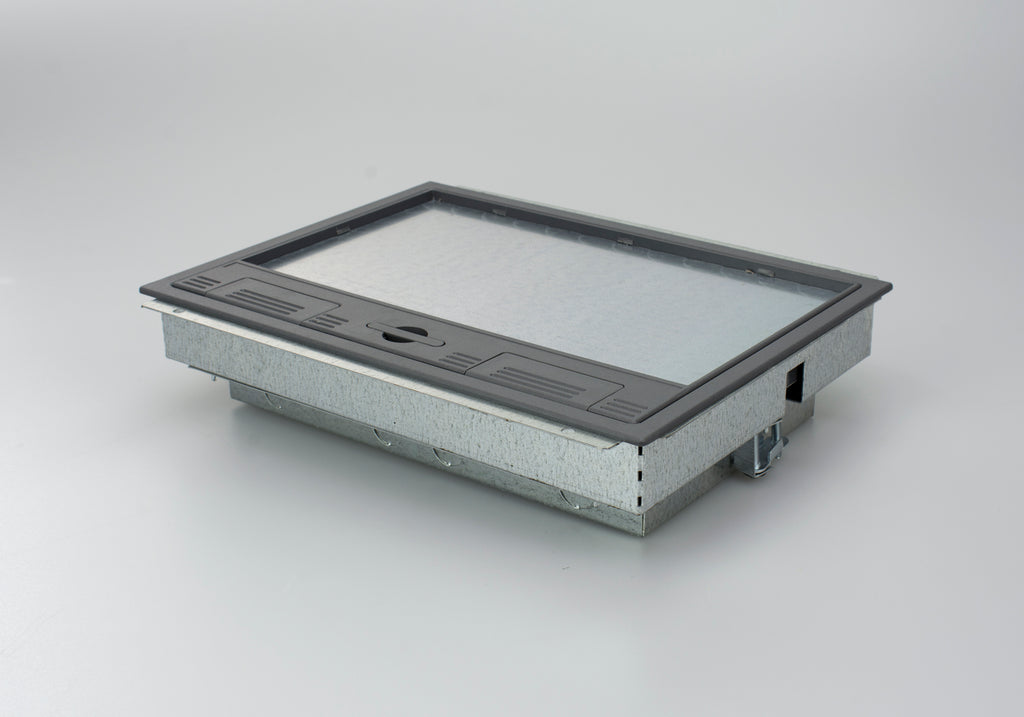

• Floor box manufactured from galvanised steel
• 20mm KNOCKOUTS ONLY to accept flexible conduit
• Frame & lid moulded from high impact polycarbonate (RAL7031)
• Galvanised lid insert for strength
• Easy grip recessed lifting handle
• Compact design 303mm x 221mm floor cut-out
• Clamp fixing for fast installation
• Large range of accessory plate, colour equivalent: RAL7035

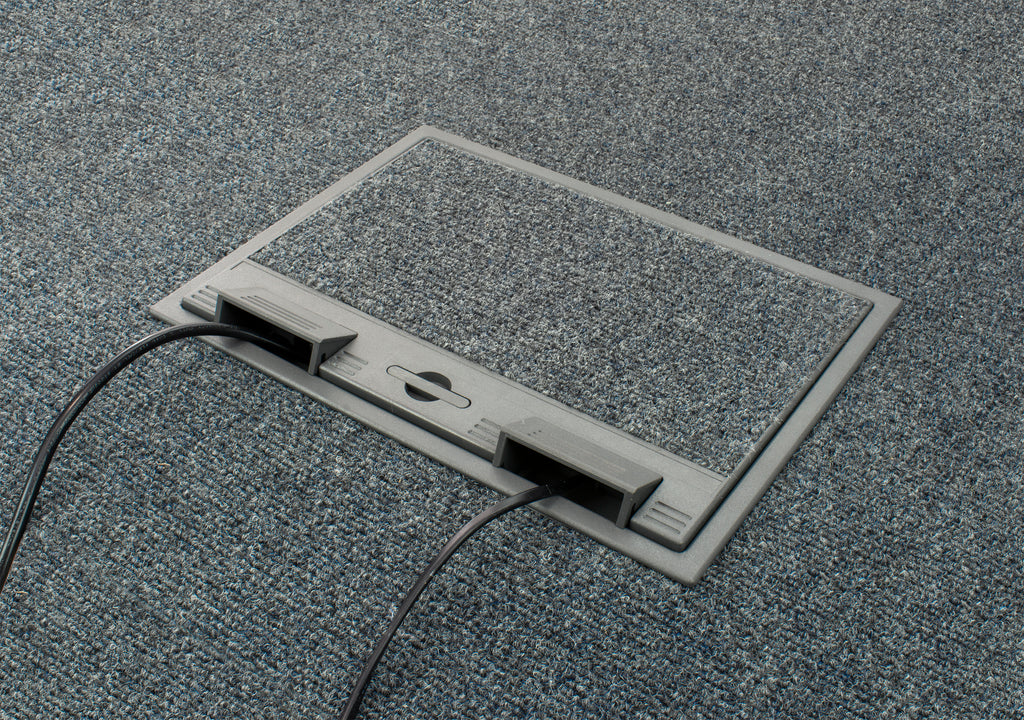

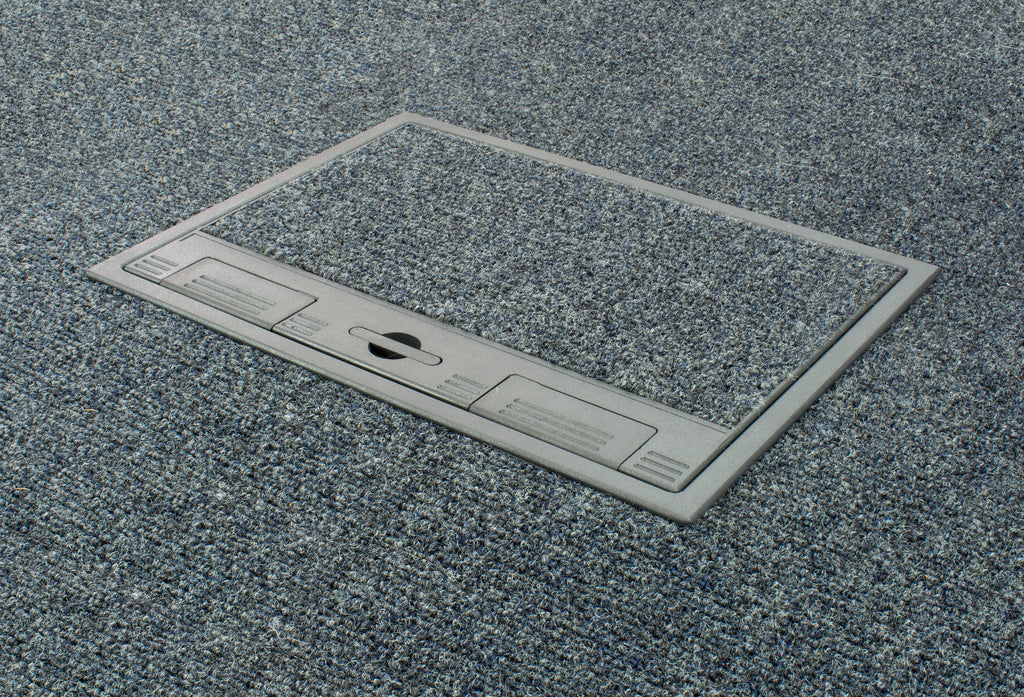

• Suitable for carpeted floors only with standard Frame & Lid
• Clean Earth Sockets available
• IP Rating: IP20
• ABS Frame & Lid fire rating UL94 HB Halogen Free
• Fire rating Euro Class E-F Class 4 None Tested
• ABS Plastic Frame & Lid Load Test 550 KG
• Steel Frame & Lid Load Test 740 KG
Note: The TFB3/64mm floor box has restrictive cabling capacity we strongly recommend the use of Side wired Sockets (ST0291/SW).
| Model: | TFB3/64 |
|---|---|
| Floor Cut Out: | 303mm x 221mm |
| Floor Box Depth: | 64mm |
| Plug Top Clearance: | 24mm |
| Overall Frame & Lid: | 313mm x 230mm |
| Frame Lid Recess: | 6mm |
| Accessory Plate: | 185mm x 89mm |
TFB3/64 Accessory Plate Options
 ST0283Blank Plate |
 ST02844 Way Data Plate |
 ST0284/W4 way Wave Data Plate |
 ST02896 Way Data Plate |
 ST0291/SWTwin Switched Sockets (Side Wired) |
 ST02942 x 50mm Euro Module Plate |
Frame & Lids Options for TFB3/64 & TFB4/64
 ABSL6R281Replacement ABS Frame & Lid |
 ABSL6R281-LLLockable ABS Frame & Lid |
