- Manufactured from galvanised and stainless Steel
- Fitted with 20mm Cam lock (supplied with 2 keys)

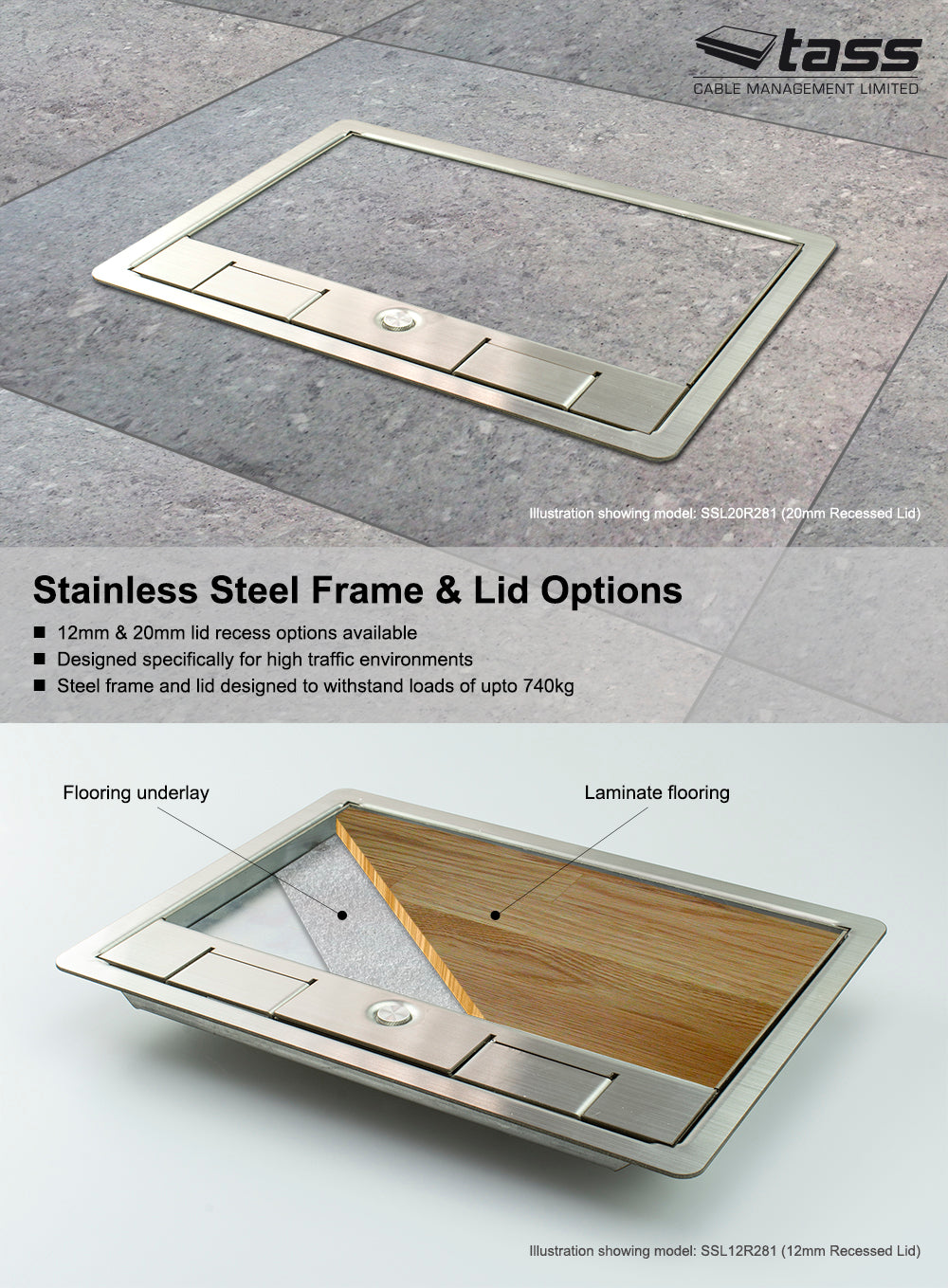

- 12mm lid recess ideal for ceramic tiles, laminate floors or thick carpets
- Designed specifically for high traffic environments such as schools, colleges and many other uses
- Galvanised steel lid insert for added strength
- Lifting handle and cable flaps
- Steel frame and lid designed to withstand loads up to 740kg
Note:
- Floorbox should not be in use when the Lid is in the locked position.
- Available with Stainless Steel Lid Infil option (select from the dropdown menu)
| Model: | SSL12R296/LL |
|---|---|
| Frame & Lid: | 280mm x 230mm |
| Recess: | 12mm |
| Recessed Area: | 241mm x 148mm |
| Suitability: | TFB3s, TSB2 & TSB3s |
| Colour: | Stainless Steel |
| Outer Flange: | 15mm |
| Overall Unit Depth: | 32mm |
Lid Infill Option Specifications
| Model: | SSL12RINFILL/296 |
|---|---|
| Recess Depth: | 12mm |
| Recessed Area: | 238mm x 147mm |
| Suitability: | TFB3s, TSB2 & TSB3s Box Ranges |
| Colour: |
Brushed Stainless Steel |
