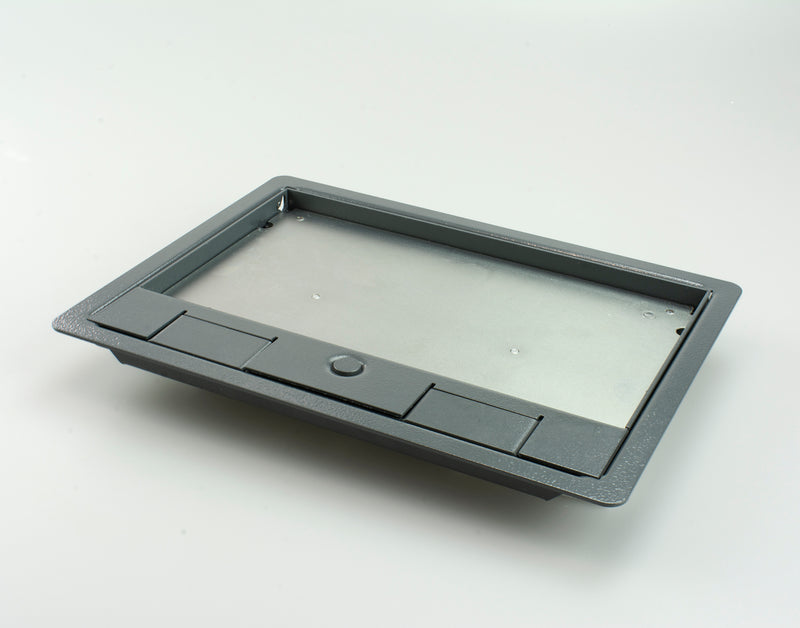

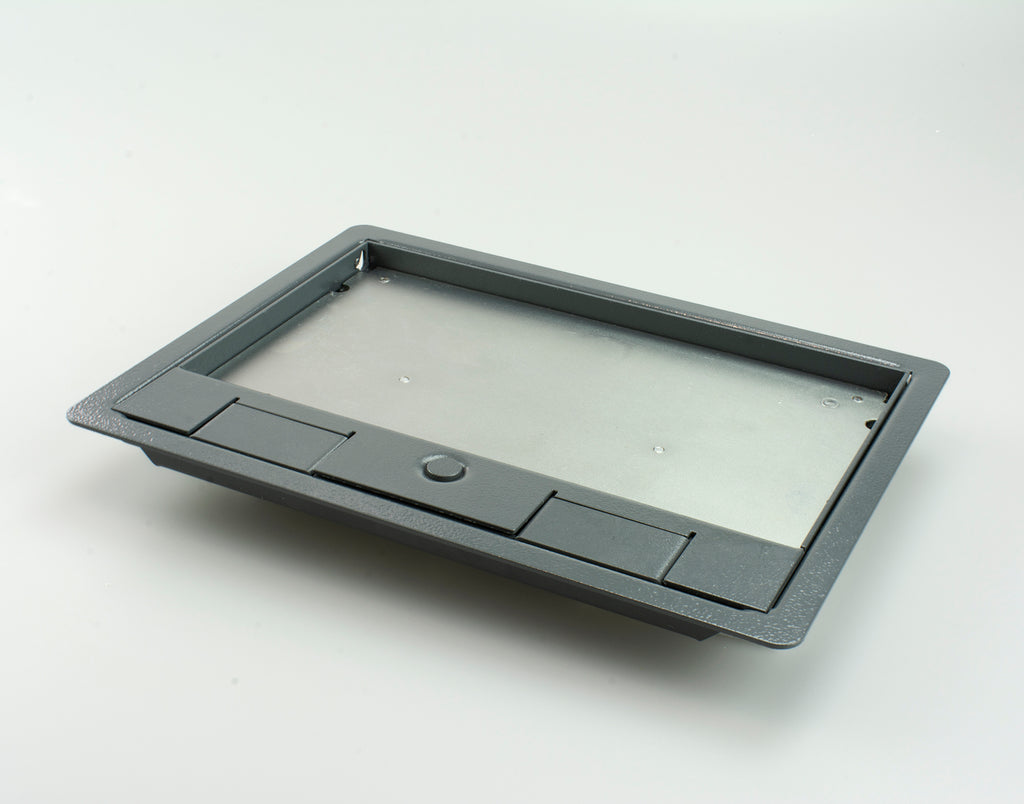

- Manufactured from Powder Coated Steel
- Designed for use with large 3 and 4 compartment boxes
- 12mm lid recess ideal for ceramic tiles, laminate floors or thick carpets
- Designed specifically for high traffic environments such as schools, colleges and many other uses
- Galvanised steel lid insert for added strength
- Lifting handle and cable flaps
- Steel frame and lid designed to withstand loads up to 740kg
- Colour equivalent to RAL7031 (Dark Grey)
- Price Includes Off-set of Plastic Frame & Lid

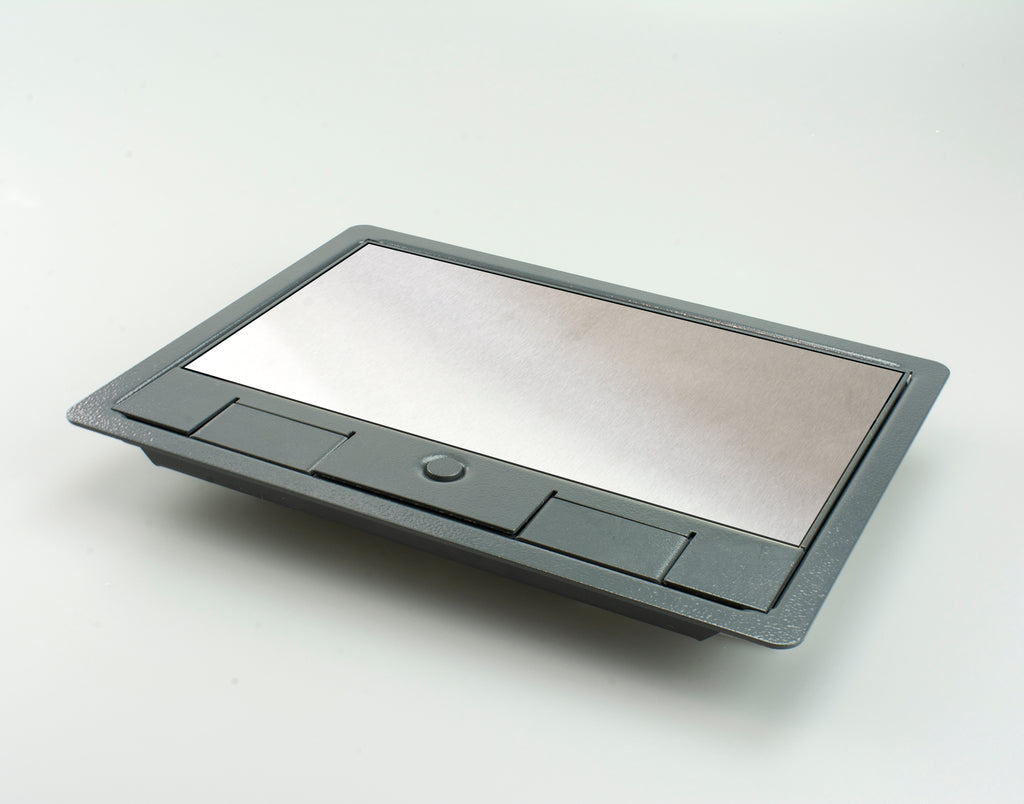

Note: Available with Stainless Steel Lid Infil option (select from the dropdown menu)
| Model: | PCL12R281 |
|---|---|
| Frame & Lid: | 320mm x 240mm |
| Recess: | 12mm |
| Recessed Area: | 282mm x 156mm |
| Suitability: | 3 (Large) & 4 Compt boxes |
| Colour: | Dark Grey (RAL 7031) |
| Outer Flange: | 15mm |
| Overall Unit Depth: | 32mm |
Lid Infill Option Specifications
| Model: | SSL12RINFILL/281 |
|---|---|
| Recess Depth: | 12mm |
| Recessed Area: | 281mm x 156mm |
| Suitability: | 3 & 4 Compartment Large Box Range |
| Colour: |
Brushed Stainless Steel |
