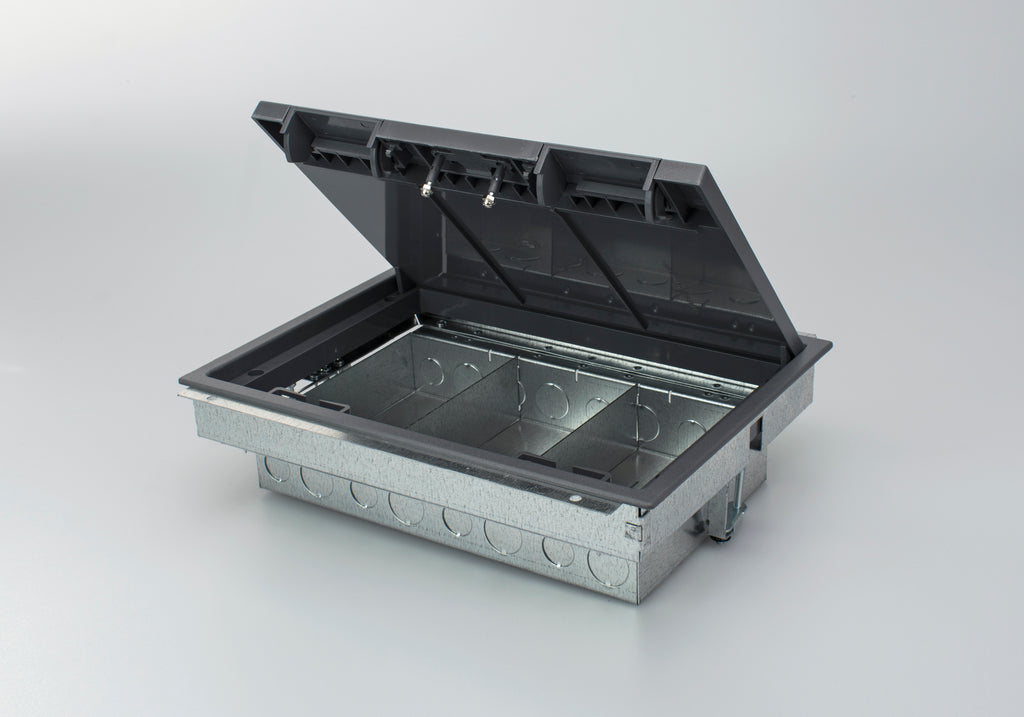

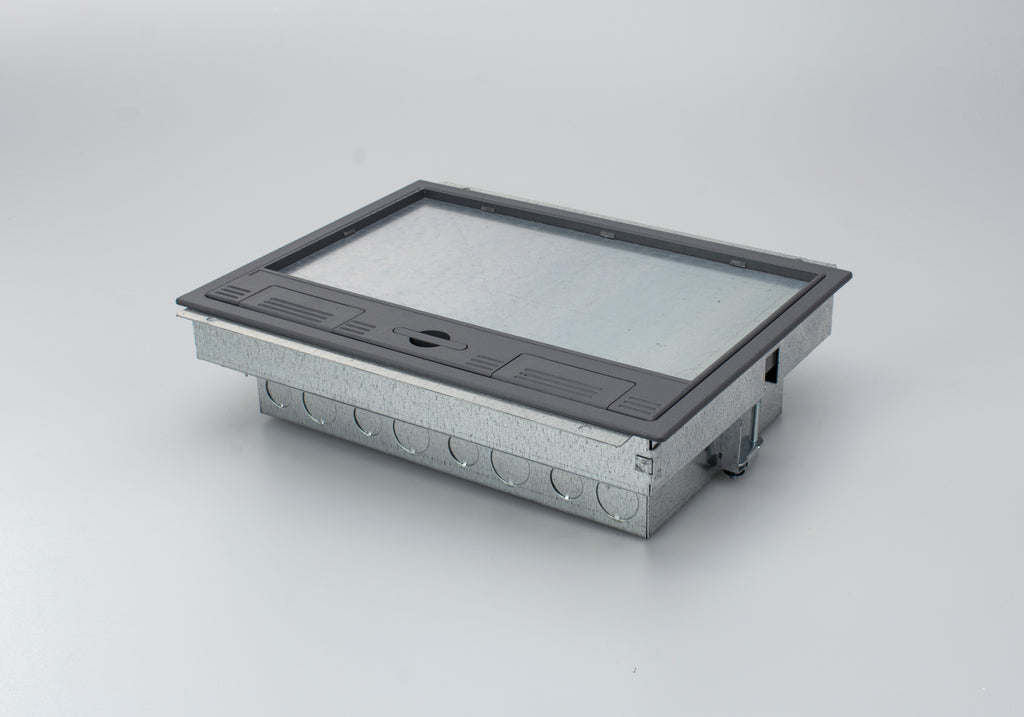

• Floor box manufactured from galvanised steel
• Designed specifically to accept ST0291/RCD Twin RCD Protected Sockets
• 20mm & 25mm knockouts to accept flexible conduit
• Frame & lid moulded from high impact polycarbonate (RAL7031)
• Galvanised lid insert for strength
• Easy grip recessed lifting handle
• Compact design 303mm x 221mm floor cut-out
• Clamp fixing for fast installation
• Large range of accessory plate, colour equivalent: RAL7035

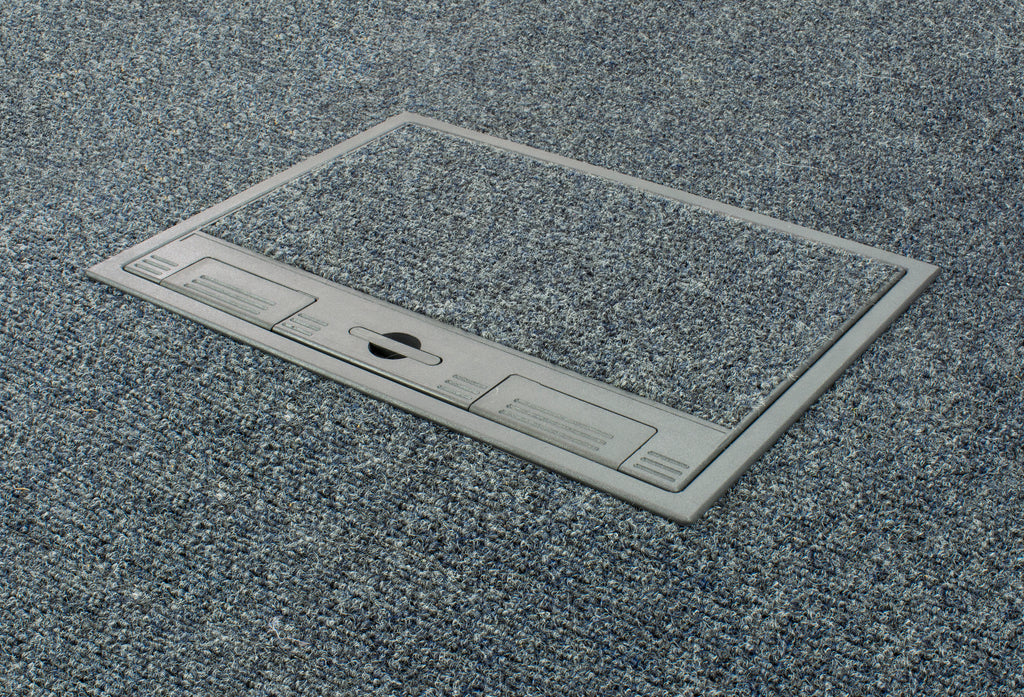

• Suitable for carpeted floors only with standard Frame & Lid
• Clean Earth Sockets available
• IP Rating: IP20
• ABS Frame & Lid fire rating UL94 HB Halogen Free
• Fire rating Euro Class E-F Class 4 None Tested
• ABS Plastic Frame & Lid Load Test 550 KG
• Steel Frame & Lid Load Test 740 KG
| Model: | TFB3/80 |
|---|---|
| Floor Cut Out: | 303mm x 221mm |
| Floor Box Depth: | 80mm |
| Plug Top Clearance: | 28mm |
| Overall Frame & Lid: | 313mm x 230mm |
| Frame Lid Recess: | 6mm |
| Accessory Plate: | 185mm x 89mm |
Accessory Plate Options
 ST0283Blank Plate |
 ST02844 Way Data Plate |
 ST0284/W4 way Wave Data Plate |
 ST0286F2 x 1 Gang Accessory Plate |
 ST0286/1FMFlush 1 Gang Accessory Plate |
 ST0287FStandard Twin Accessory Plate |
 ST0287/FMFlush Twin Accessory Plate |
 ST02896 Way Data Plate |
 ST0291Twin Switched Sockets |
 ST02942 x 50mm Euro Module Plate |
 ST0295Triple Unswitched Sockets |
 ST0291/USBTwin Sockets with USB |
 ST0291/RCD/GBTwin RCD Protected Sockets |
 ST0287FM/RCDFlush Mounted Twin RCD Protected Sockets |
Frame & Lid Options (76mm - 80mm Depth Boxes)
 PCL12R281Powder Coated Steel Frame & Lid (12mm Recess) |
 SSL12R281Stainless Steel Frame & Lid (12mm Recess) |
 PCL281FLPowder Coated Steel Frame & Lid (Flush Lid) |
 SSL281FLStainless Steel Frame & Lid (Flush Lid) |
 SSL12R281-LLLockable Stainless Steel Frame & Lid (12mm Recess) |
 SSL281FL-LLLockable Stainless Steel Frame & Lid (Flush Lid) |
 ABSL6R281-LLLockable ABS Frame & Lid |
 ABSL6R281Replacement ABS Frame & Lid |
