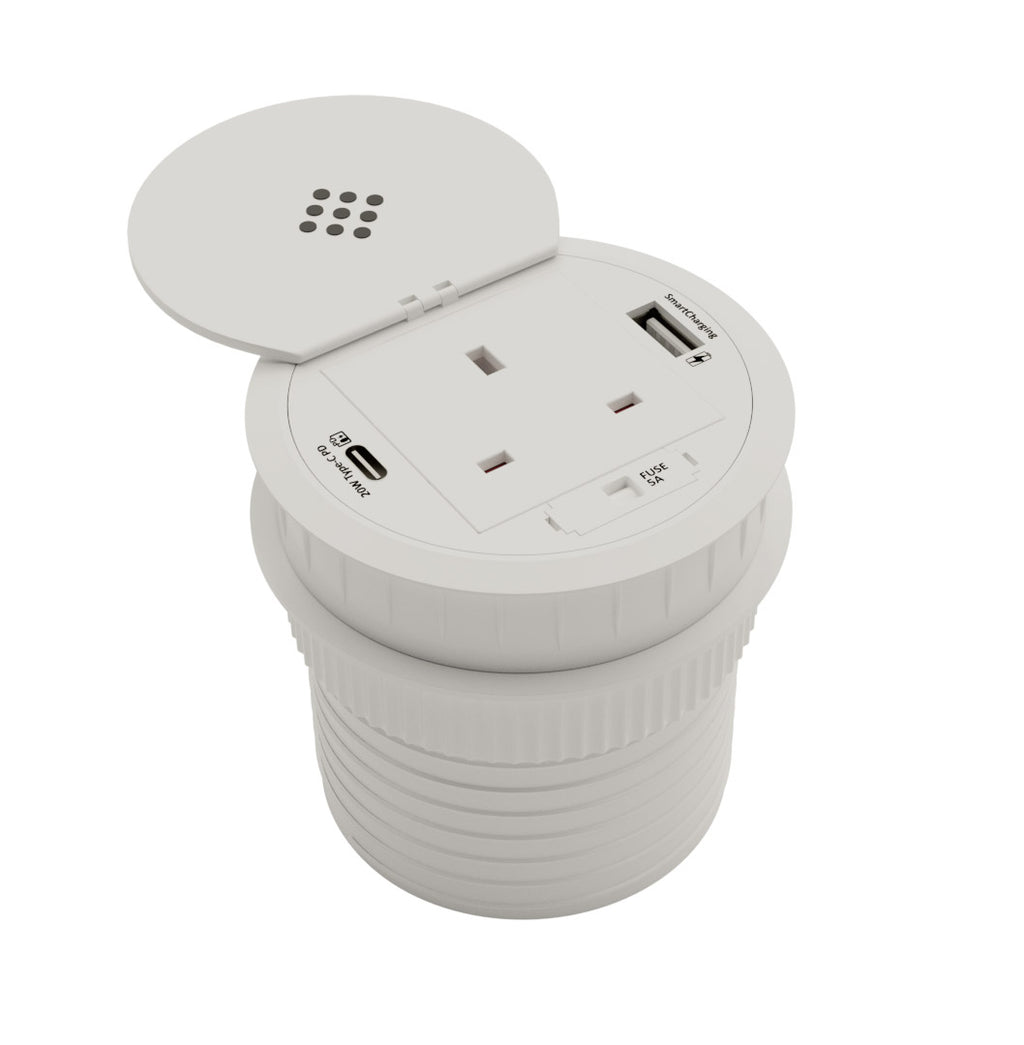

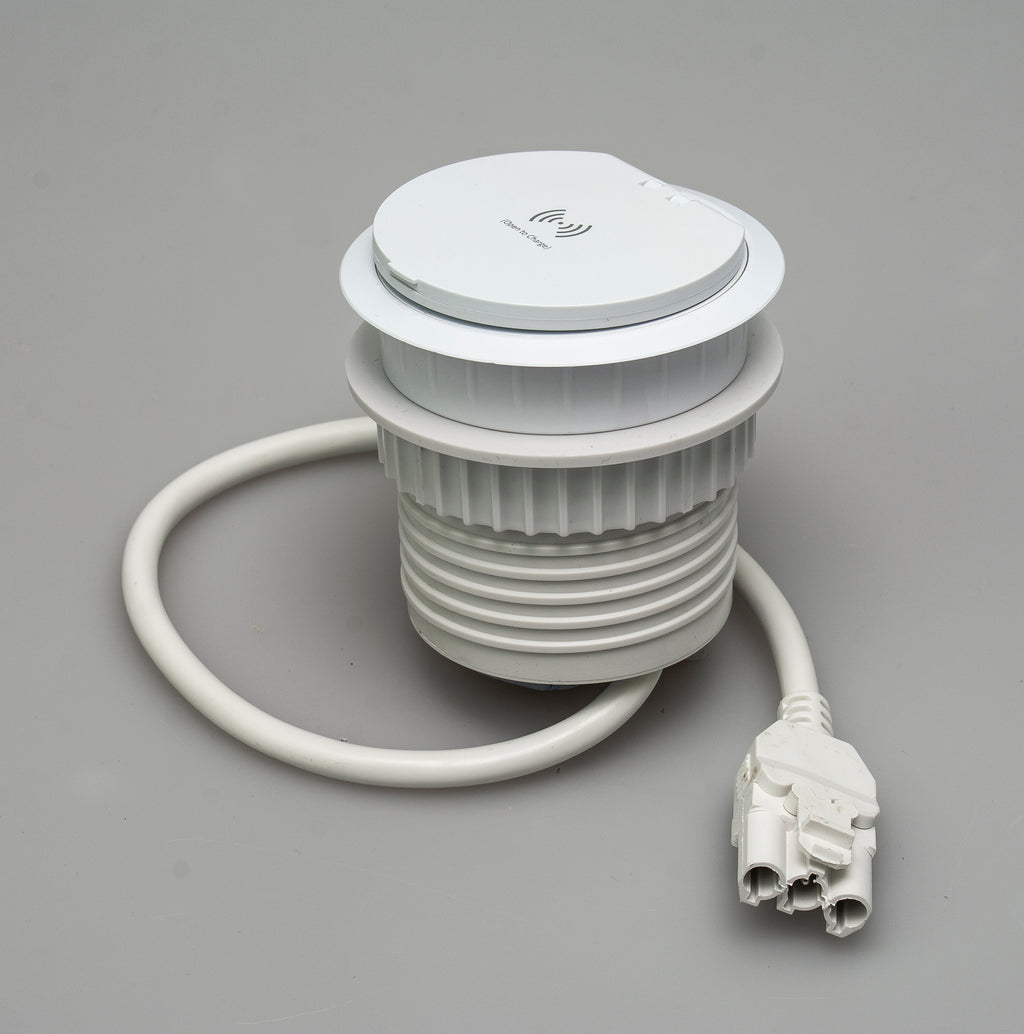

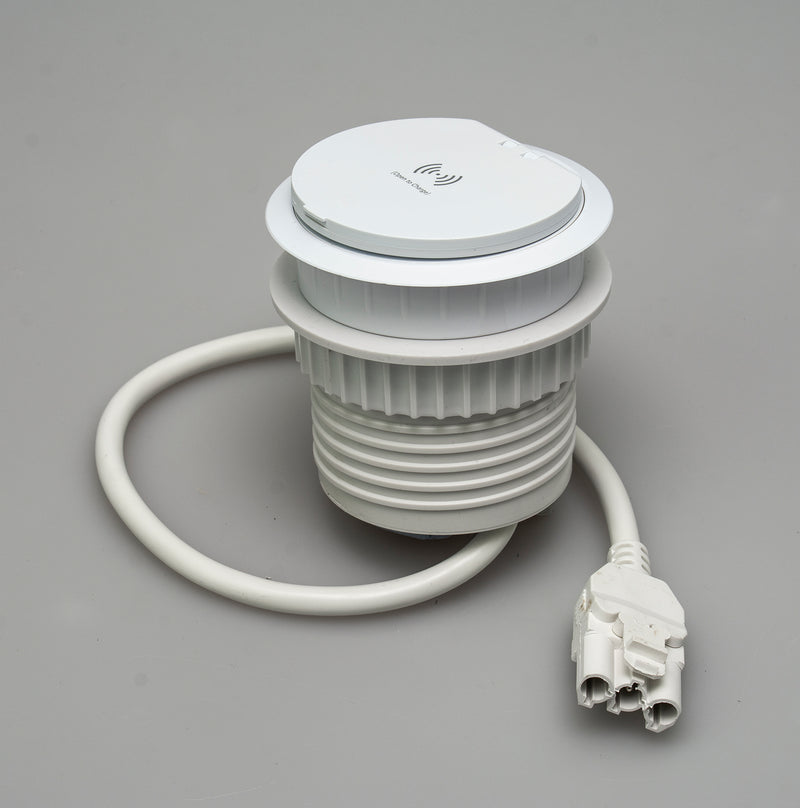

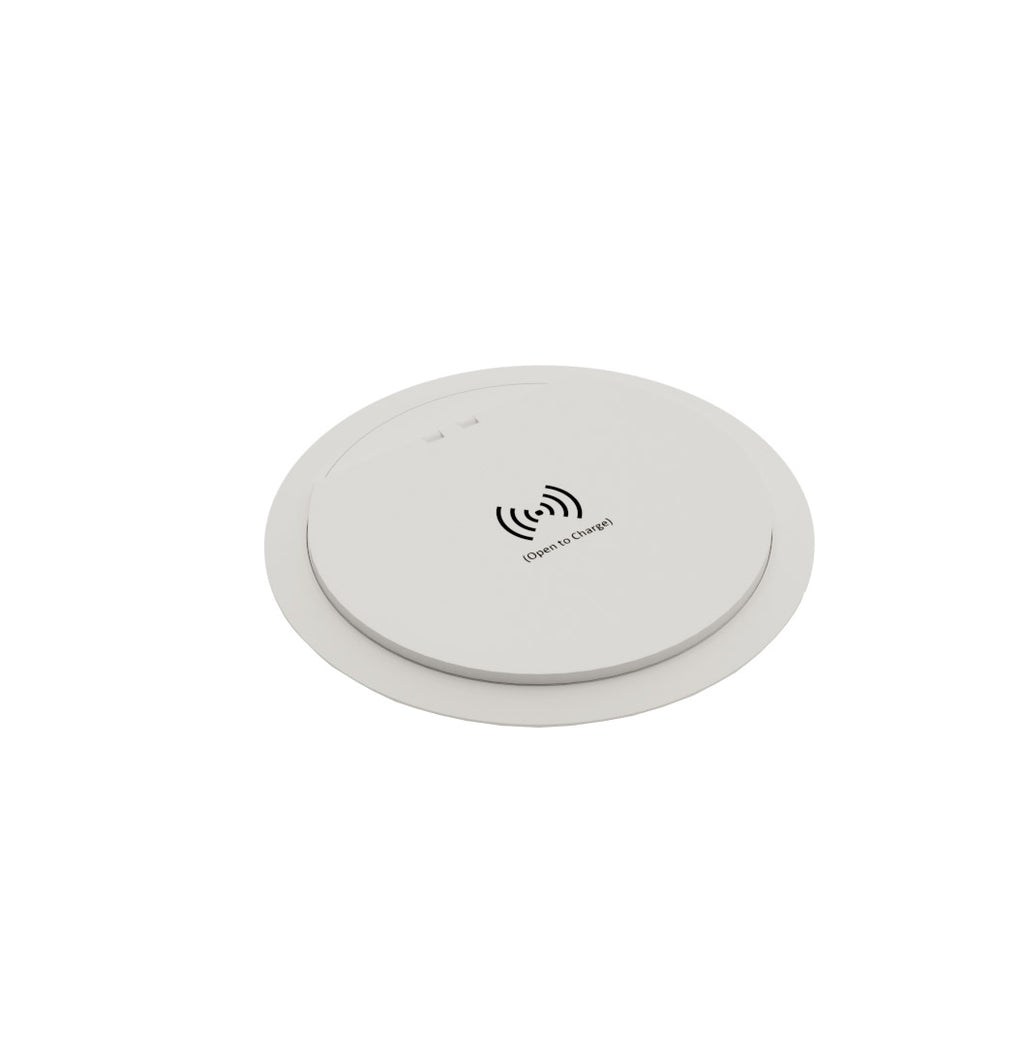

This in-desk Power Grommet combines multiple methods of power charging including wireless charging. The unit fits into a standard 80mm desk cut out, it comes available in either a black or white finish and is a stylish addition to any workplace.
The unit locks securely into position by means of a locking collar, making installation tool-less, quick and simple. The lid adds a touch of class and gives it a premium feel.
Powered by a 3 pin connector, the Power Grommet is compatible with Power start leads (please select your required length when ordering), for Power start leads longer than 5m please click here.
- Tits in standard desk 80mm cut out
- USB Type A & C Smart chargers
- Closed lid down
- Easily replaceable 5A fuse
- 20W / 7.5W / 5W QI Wireless Charger
- 500mm flylead to male 3 Pin Connector
- Unit is held firmly in place via a screw on locking ring
Please note: Select your required Power start lead length when ordering
| Model: | PGWUSB80/WC |
|---|---|
| Cutout Dia: | 80mm |
| Construction: | PVC Extrusion, PVC Socket & Facias |
| Voltage: | 100-240V AC |
| Fuse Rating: | 5A |
| Fuse Type/Size: | 20mm Ceramic |
| Min - max Desk Thickness: | 20mm - 70mm |
| Mains Flylead: | 500mm (colour Coaded) |
| Flylead Specifications: | 1.5mm2 H05VV-F |
| Mains Connector: | 3 Pin Connector |
| Colour: | White |
| Conformity: | BS 6393 |
| USB Ports: | USB Type A & C Smart chargers |
| Wireless Charging: | 20W / 7.5W / 5W Full Function Wireless Charger, Fully QI Compliant/td> |
| Protection: | Built-in 20W DC Output power Board, Short & Overload Protection |
| Compliance: | RoHS, WEEE, CE |
