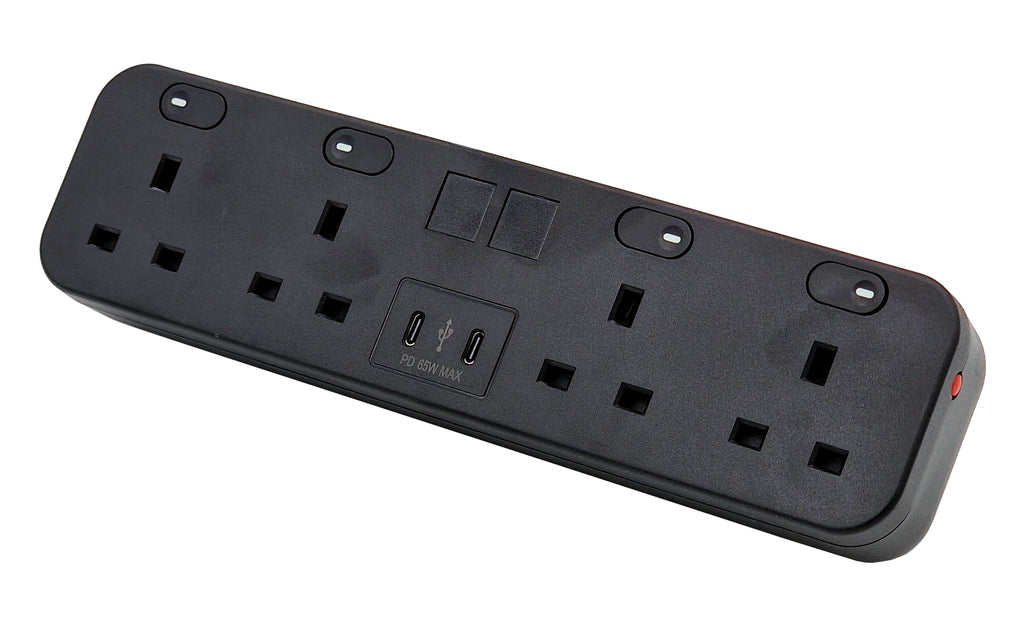

- Compact desk mounted 4 gang power unit
- Individually switched
- 3.15A resettable thermal fuse
- 2 x Media slots for AV or Data options
- Available in black or white
- 2 USB option:
- PD 18W model (includes 1 x Type A & 1 x Type C)
- PD 65W model (includes 2 x Type C)
- Superfast USB Type-C 65W charging available (see model: ICON/1B65W)
- CE & UKCA certified

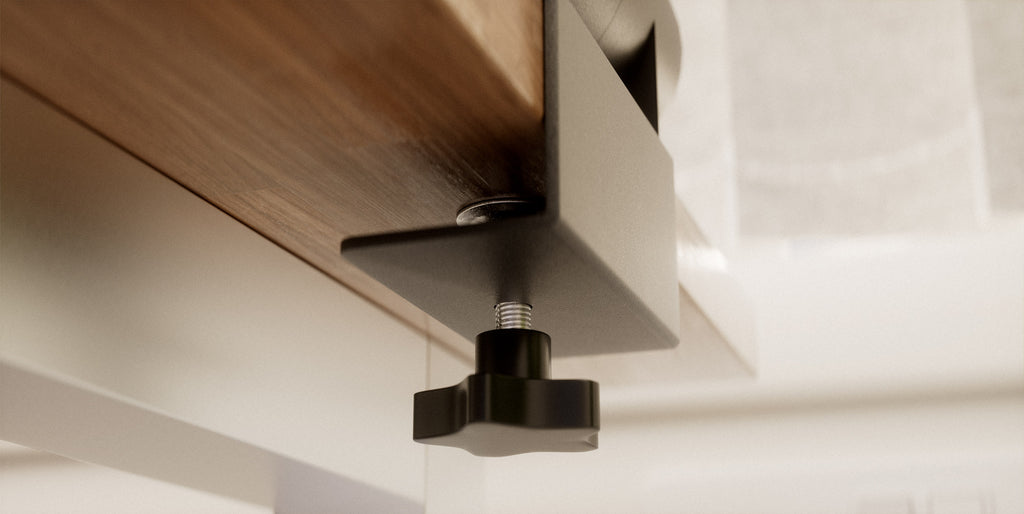

- Newly designed desk clamp included
- 500mm flylead to male 3 pin connector
- 3 pin power leads sold seperately - available in various lengths see highlighted below
- Complies with BS6396: 2002
- Other configuration options available on request (via media slots)
Please note:
- The ICON 4/B Desktop Power Unit is compatible with 3 Pin Power Start Leads (available in various lengths and sold separately), click here to select your required lead length.
| Model: | ICON 4/B Desktop Unit (Black) |
|---|---|
| Dimensions: | (L) 265mm x (H) 74mm x (D) 74mm |
| Power: | 4 x UK Sockets |
| Voltage: | 250V max load 13A |
| Fuse: | 3.15A Resettable Thermal Fuse |
| Input Connector: | 3 Pin Power Connector |
| USB: |
PD 18W Model: Type A: (QC3.0), Type C: 1 Ports PD 65W Model: Type C only: 2 Ports ( C1: 45W Max & C2: 20W Max) |
| Switched: | Yes (individually) |
| Input: | 500mm flylead with 3 Pin Connector |
| Colour: | All Black Body |
| Conformity: | BS1363 / BS6396:2002 |
| Accreditation: | BS5733 / UKCA / CE Mark |
| Flammability: | UL94V-0 / IP20 |
| Desk Clamp | Toolless, 70mm width, Desk Thickness 20mm to 35mm |
