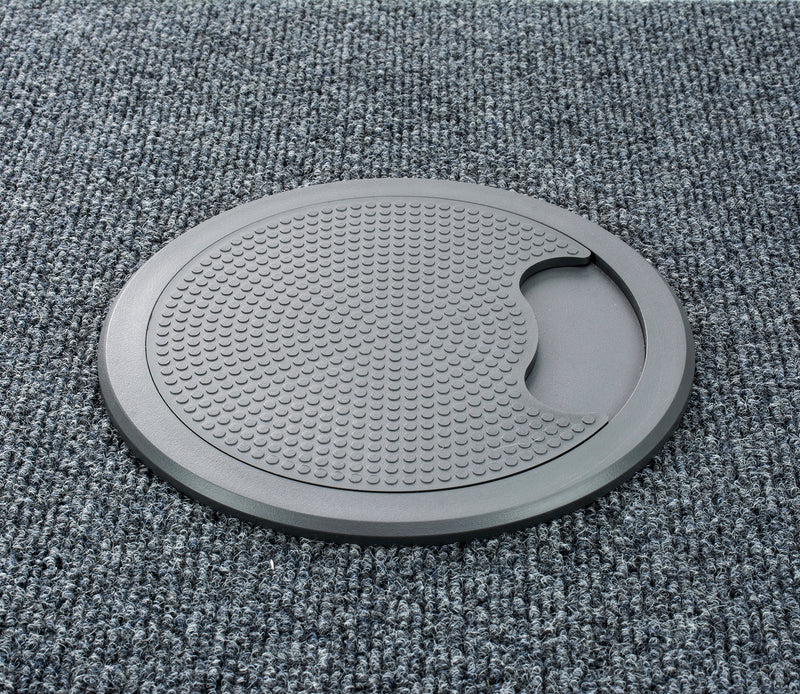

- Adjustable aperture opening
- Secure Screw clamp installation
- Manufactured from High Grade engineering plastics/ABS
- Halogen Free flame retardant material UL94 VO with guaranteed low toxicity
- New tapered edge flange for improved functionality
- Cable opening dimensions: 84mm x 28mm

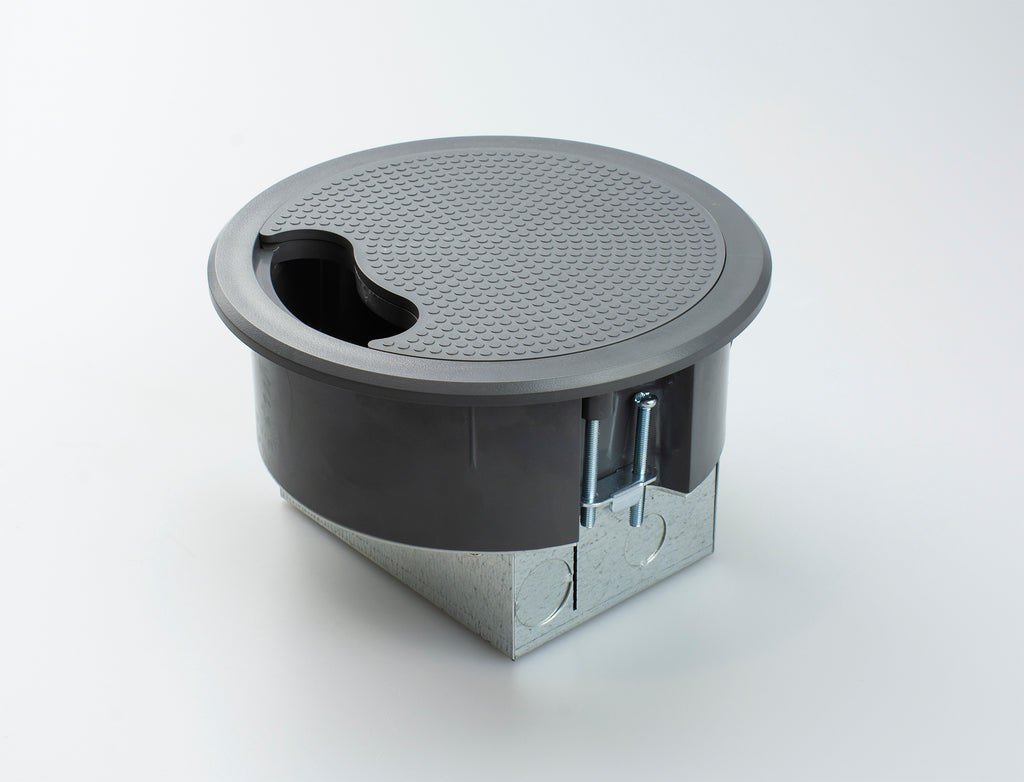

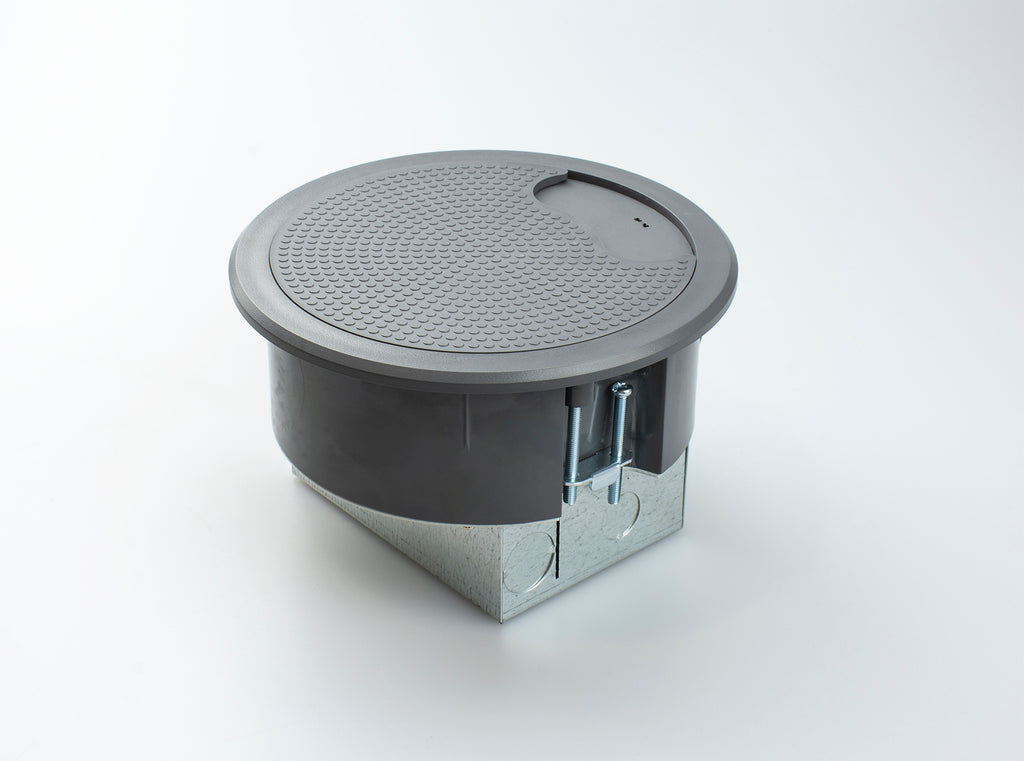

- Galvanised steel back box
- 20mm and 25mm knockouts

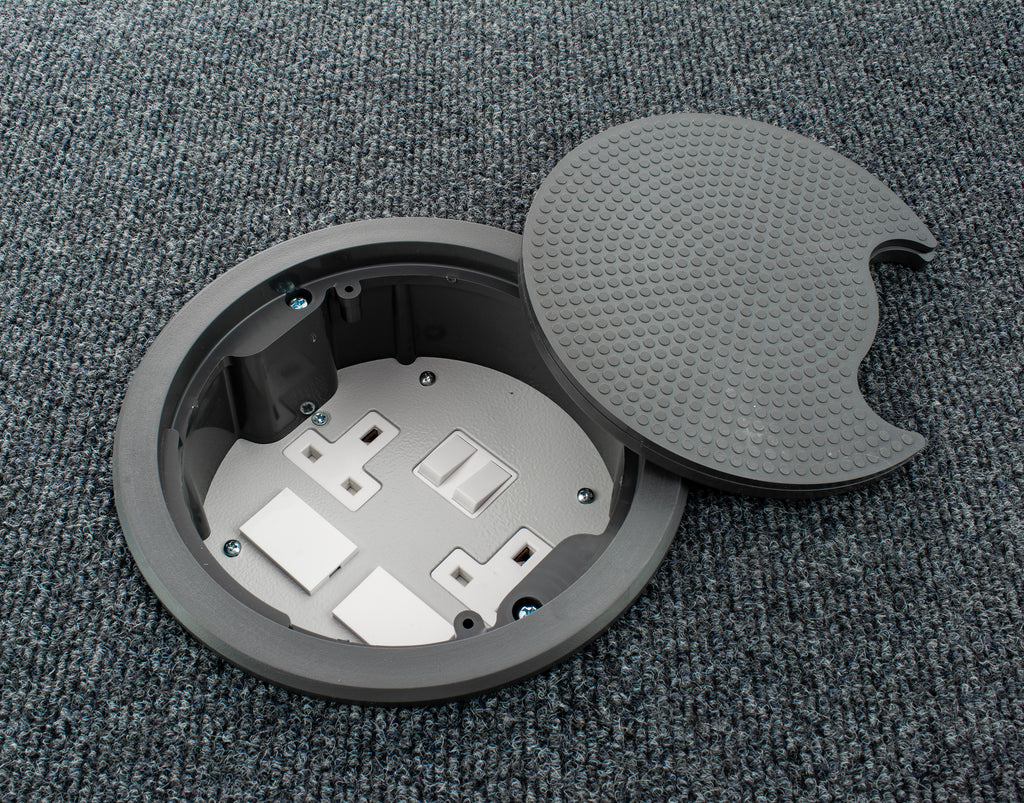

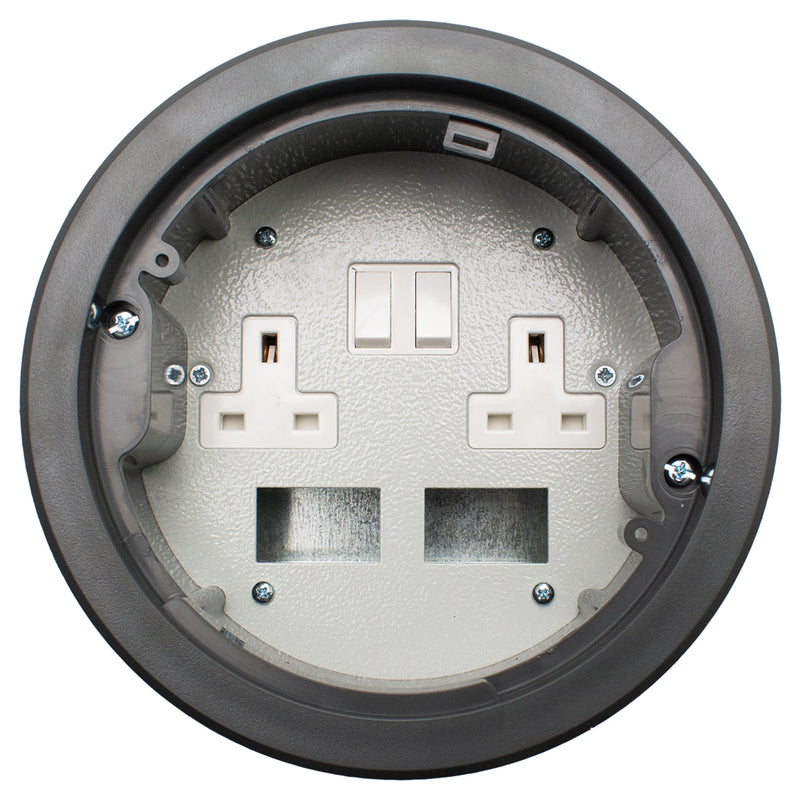

- 13A Twin switched UK Socket
- 2 x LJ6C data space (37x22mm) modules sold separately, click here for options
- Max plug top width 48mm
Please note:

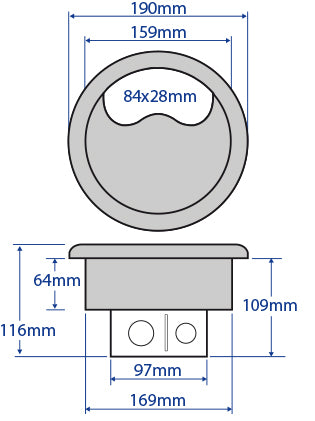

| Model: | FGG169PDD / FGB169PDD |
|---|---|
| Cutout Dia: | 169mm |
| Overall Dia: | 190mm |
| Power: | 13A Twin Switched UK Socket |
| Data: | 2 x LJ6C Data Space |
| Colours: | Grey / Black |
| Flange Thickness: | 6.85mm |
| Cable Entry: | 84mm x 28mm |
| Min. Required Depth: | 109mm |
