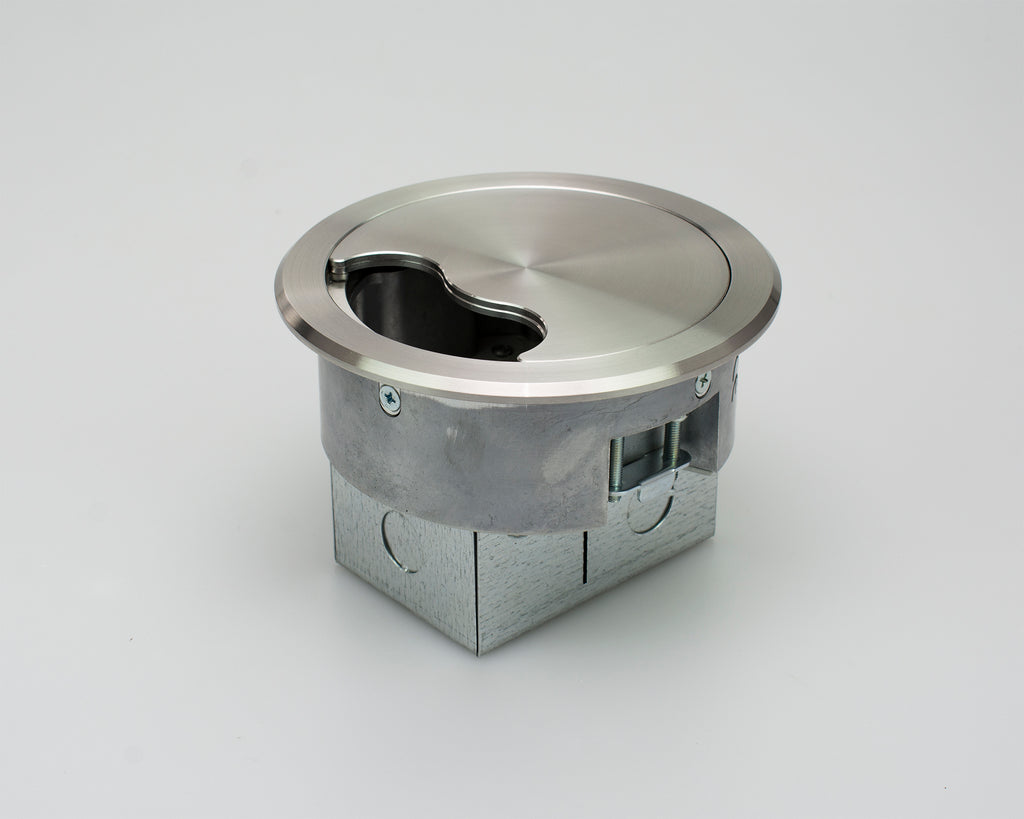

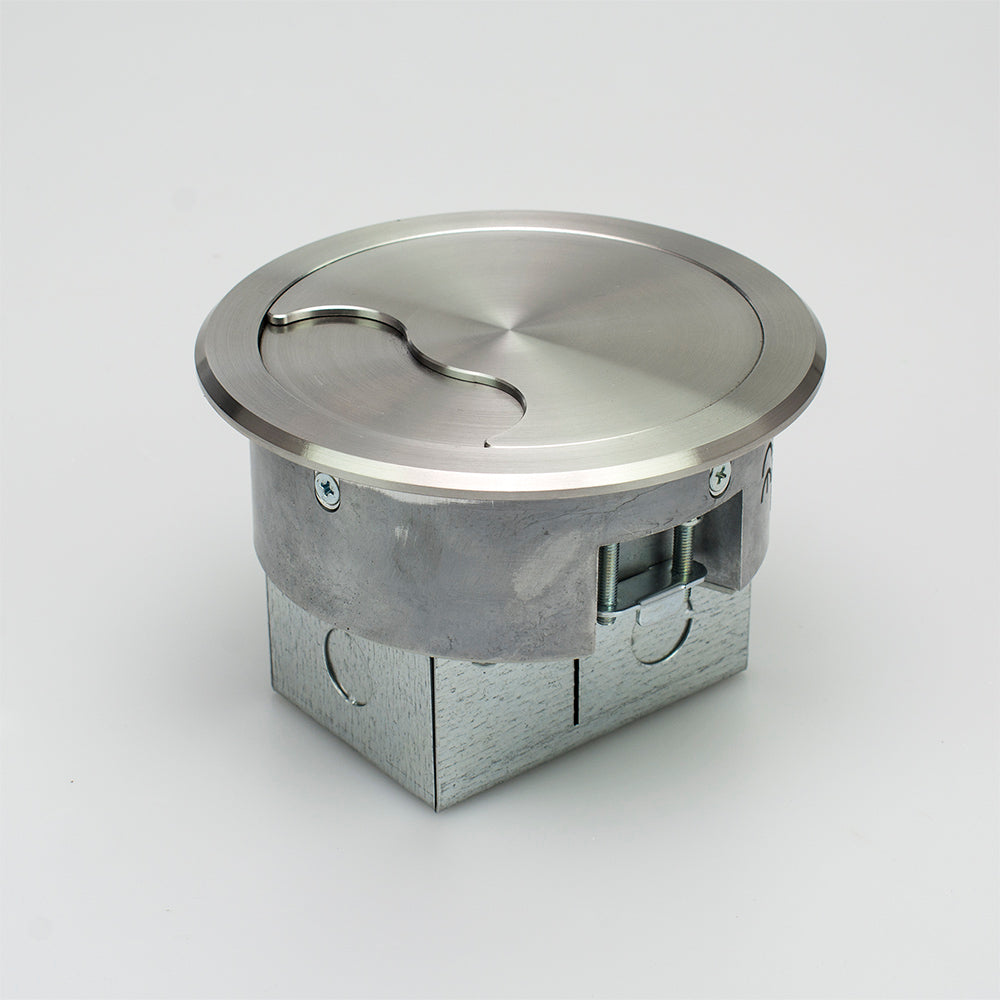

- Stainless Steel body with adjustable fixing clamps

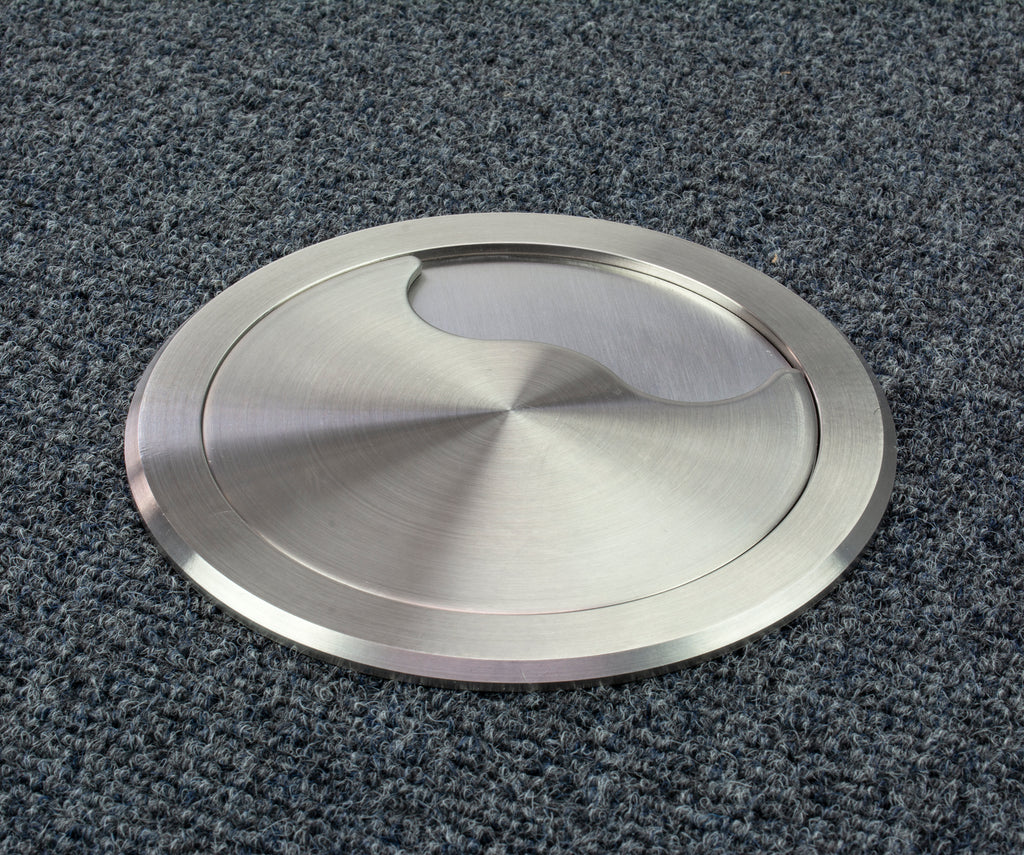

- Stainless steel lid section with tapered edge and milled finish

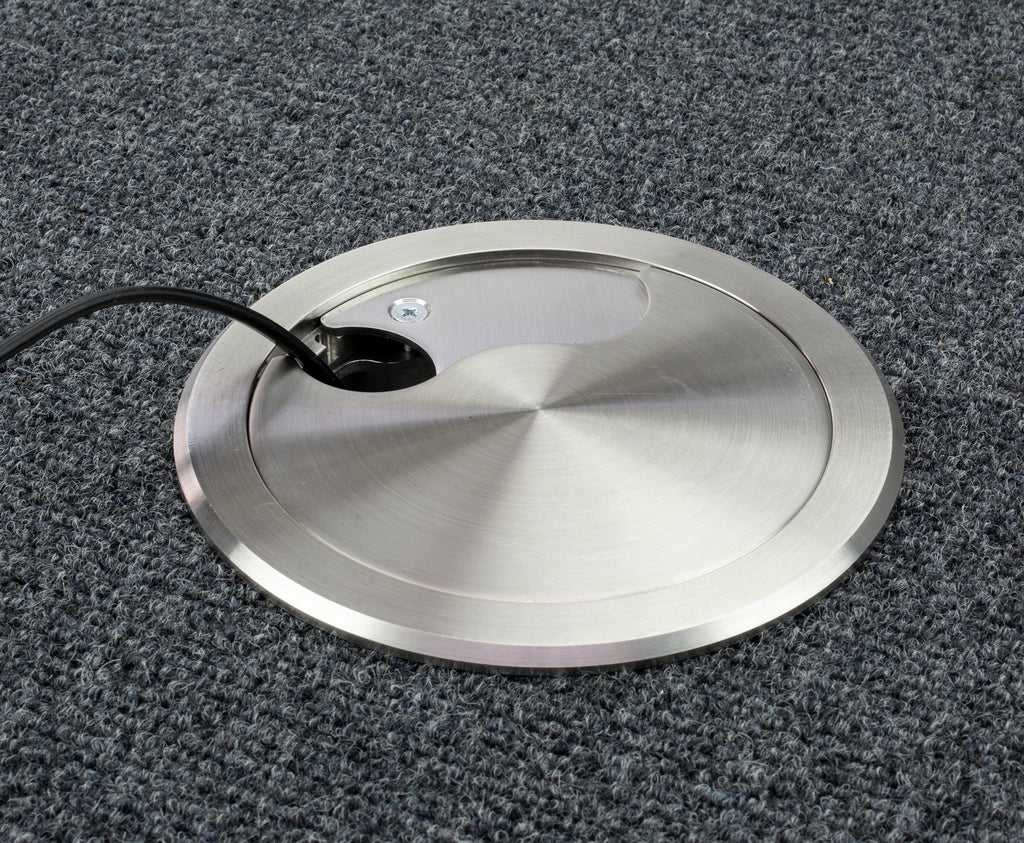

- Adjustable cable entry with lid retaining screws

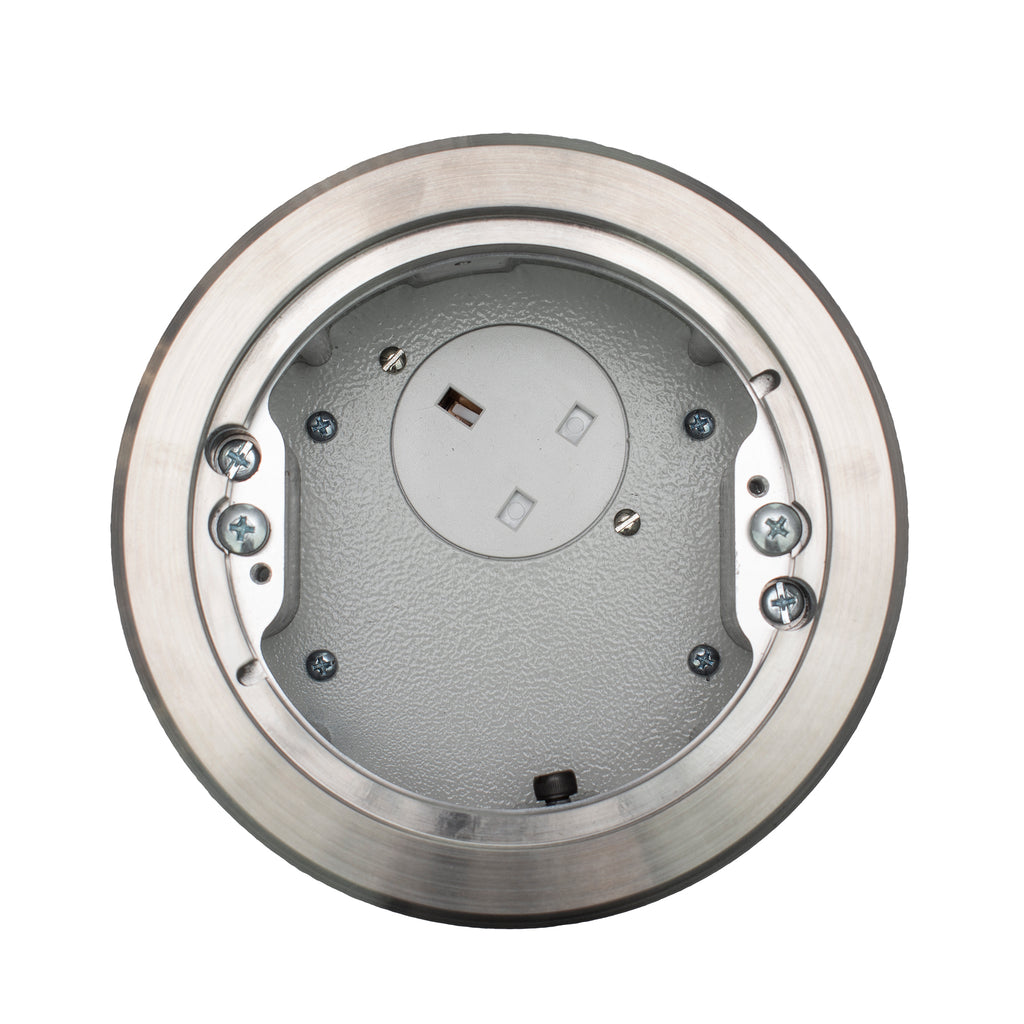

- 13A UK Socket
- Galvanised steel back box
- Cable entry size: 80x35mm
- Stainless steel unit must be earthed
- Fixing clamps
- Galvanised steel back box
- 20mm knockouts
Please note:

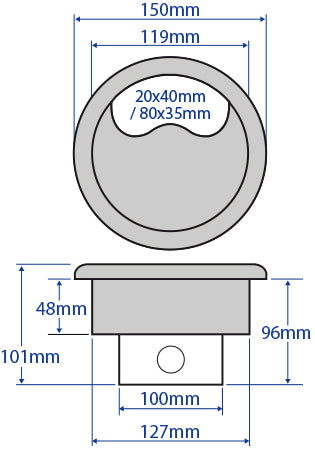

| Model: | PGS001 |
|---|---|
| Cutout Dia: | 127mm |
| Overall Dia: | 150mm |
| Power: | 1 x 13A UK Socket |
| Data: | None |
| Colours: | Stainless Steel |
| Flange Thickness: | 5.46mm |
| Cable Entry: | 80mm x 35mm |
| Min. Required Depth: | 96mm |
