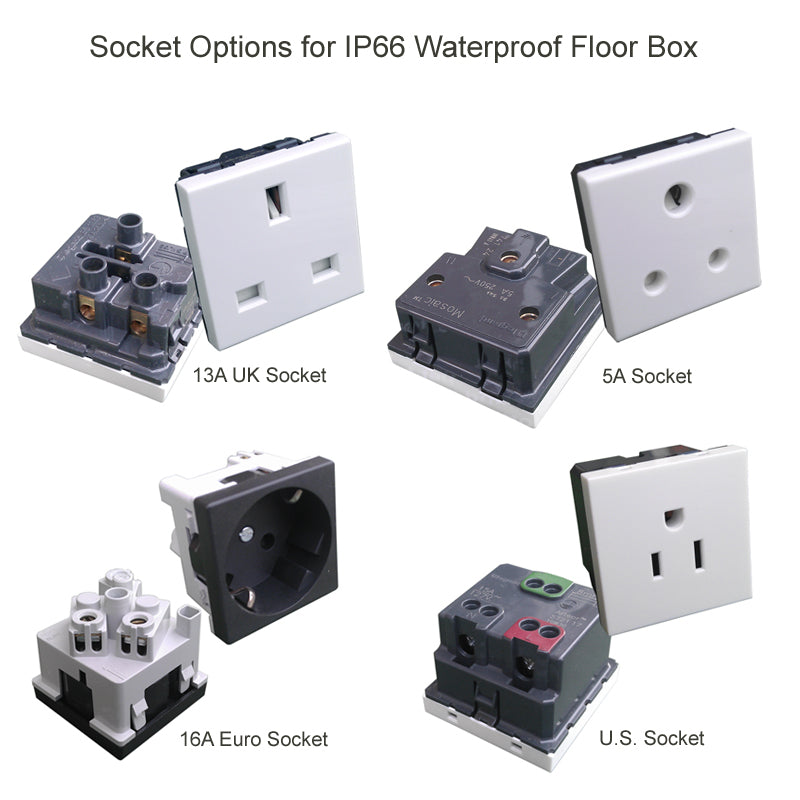

- Stainless steel support unit including 13A UK power socket (other socket options available)
- Ideal for open or outdoor areas which require occasional power connection

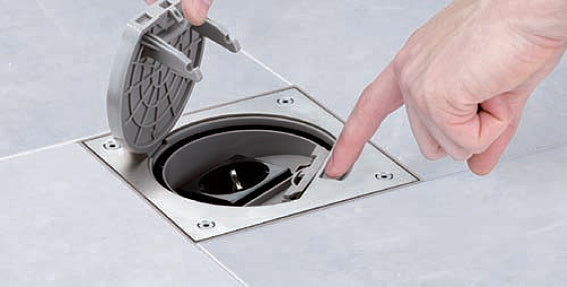

- Standard Lock Mechanism

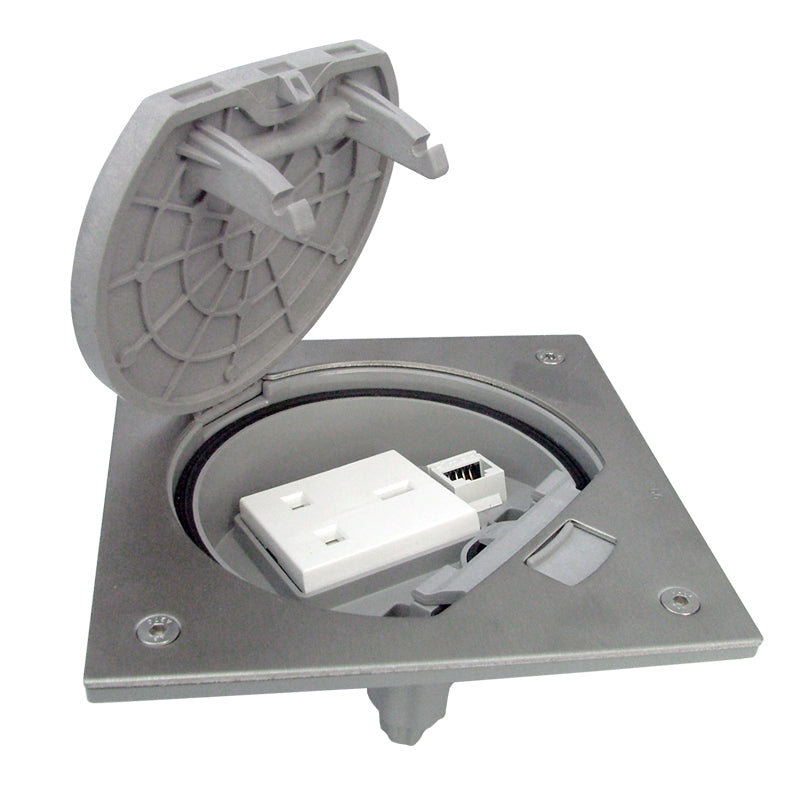

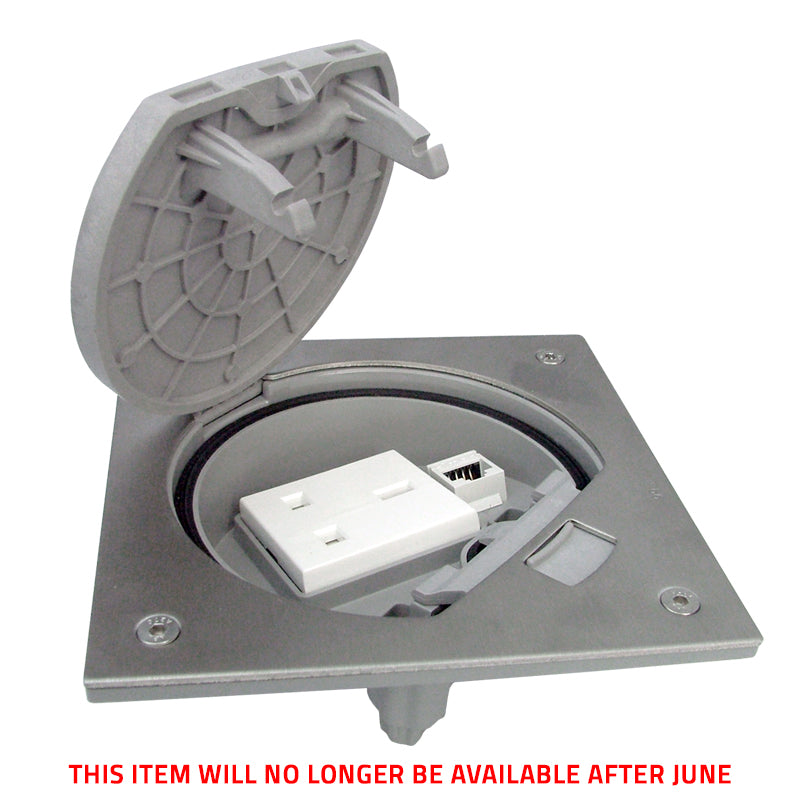

- 1 x RJ45 Data Port (Cat5e)
- Safety cover - hinge opens to less than 90 degrees so lid cannot be left open accidentally

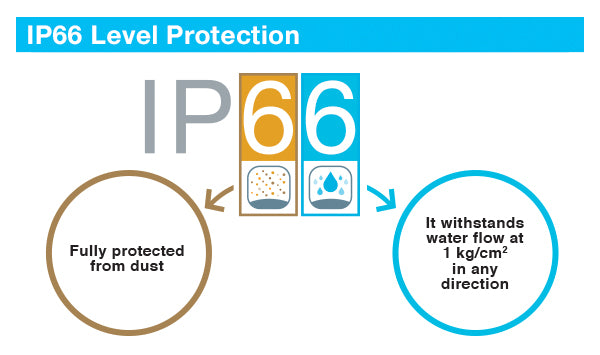

- Unit offers IP66 Level protection from the elements
- Tray includes a wooden cover that prevents any dirt getting inside the box during installation
- Can be grouped together using connection accessory model no: ACSE (screed installation tray only)
- Max load when in closed position 1000kg
- Max loading 170Kg when lid is open and connected, strong enough to withstand pedestrians while protecting cables from pressure and stress
- Finished in Stainless Steel Grade 304
- Includes protective film to protect box surface during installation
Note: To be used in conjuction with Base section KGE170TF/23 (raised floor) or KGE170/23 (screed floor).
| Model: | KSE15U/23/72 |
|---|---|
| Dimensions: | 130mm x 130mm |
| Power: | 1 x Socket (13A UK) |
| Data: | 1 x RJ45 Data Port (Cat5e) |
| Colour: | Stainless Steel |
| Max Loading (Closed): | 1000kg |
| Max Loading (Open): | 170kg |
