- Made from high grade engineering plastic materials
- 4 x UK sockets Individually fused at 5A (20mm 5A Glass Fuse)
- 4 x LJ6C module spaces (37x22mm) designed to connect a variety of data and audio visual equipment
- Complies with BS-6396 as standard
- 3 Pin Connection
- These Units can't be daisy chained
Please note:
- Modules sold separately, click here to view options

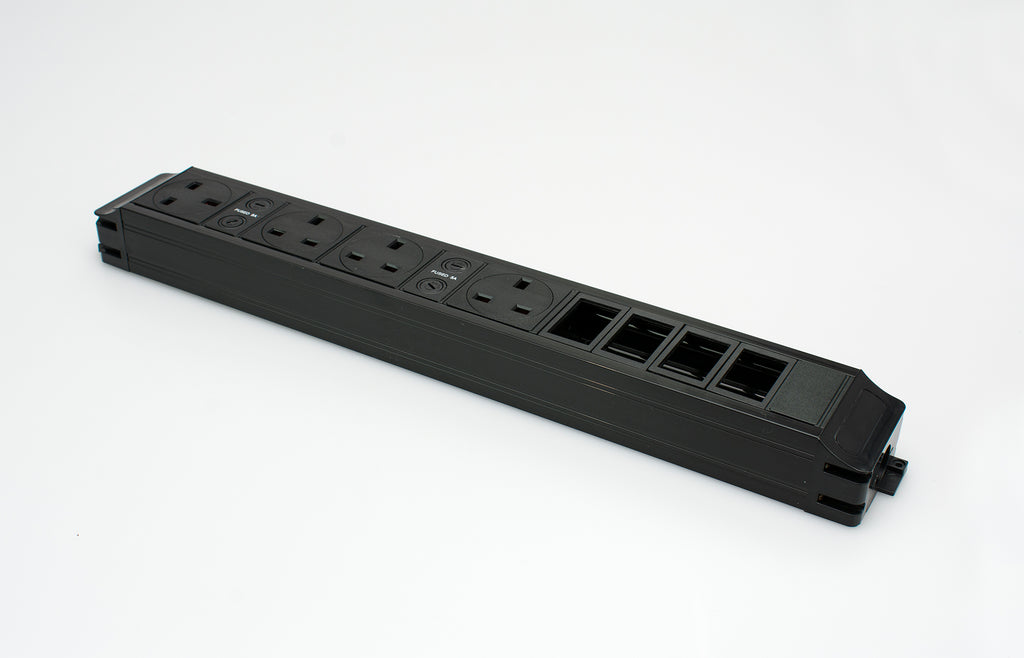

| Model: | PP4/4D |
|---|---|
| Dimensions: | (L)472mm x (W)62mm x (H)42mm |
| Power: | 4 x UK Sockets |
| Module Bays: | 4 x Module Spaces (37x22mm) |
| Input/Output Connectors: | 3 Pin Connector |
| Fuse Rating: | 5A |
| Voltage: | 100-240V AC |
| Switched | No |
| Mains Fly-lead: | None |
| Colour: | Black |
| Fixings Type: | Screw Holes |
| Conformity: | BS6396:2002 |
Desk Power Modules (LJ6C)
 P-HDMIHDMI Coupler Module |
 P-USBUSB Coupler Module |
 P-VGAVGA Coupler Module |
 P-A3.5Audio Module |
 P-CAT6Cat6 Data Module |
 100-672BKBlack Blank Plate |
