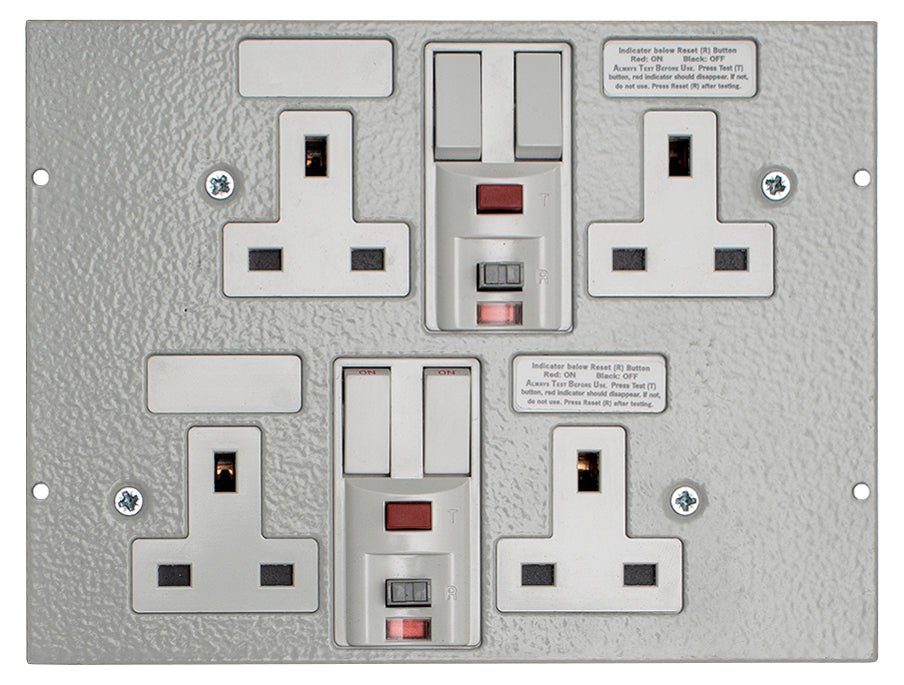

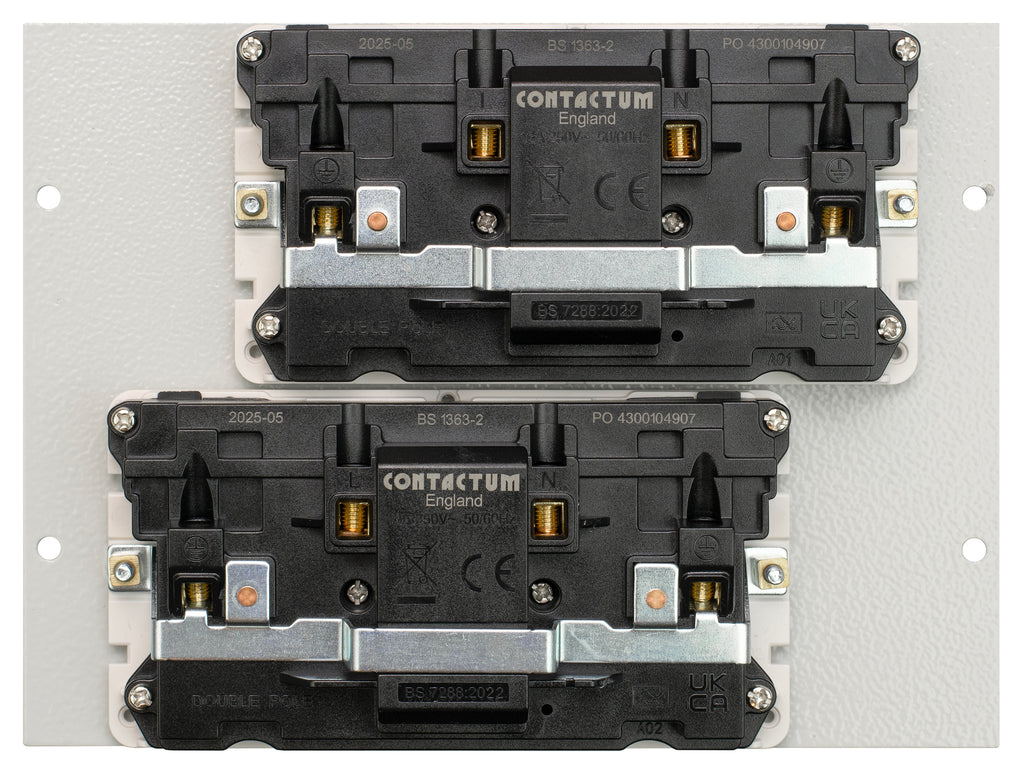

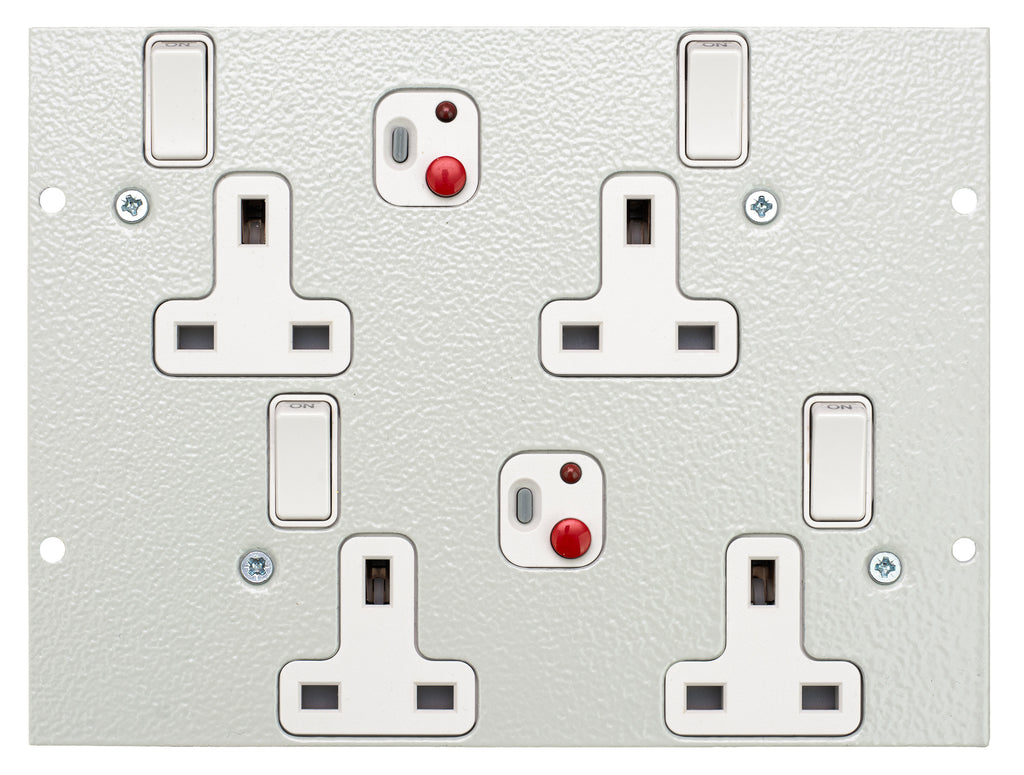

• Dual RCD protected twin switched sockets plate
• Made from galvanised steel
• Leatherette texture power coated Galvanised Steel
• Light grey RAL 7035
| Model: | ST0290/RCD/2 |
|---|---|
| Dimensions: | 185mm x 139mm |
| Colour: | Light Grey (RAL 7035) |
| Suitability: | TFB4/80-RCD2, TSB4/80-RCD2 |

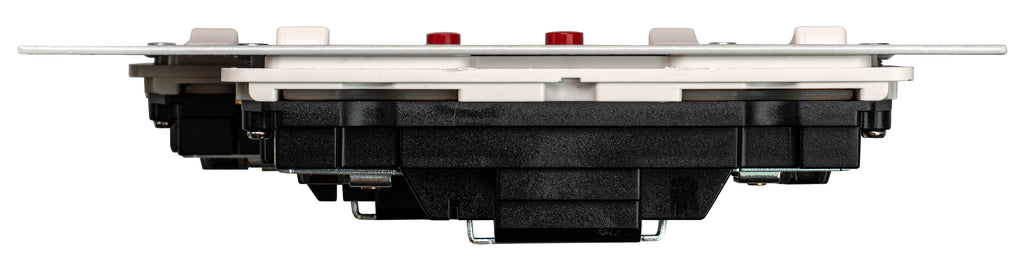

| Overall Socket Depth: | 32mm |
| Socket Material: | Thermoset (Moulded) |
| Outlets: | 2 |
| Indicator Lamp: | No |
| Switched: | Yes |
| Rocker Finish: | White Moulded |
| Rated Current: | 13A max. |
| Rated Frequency: | 50-60Hz |
| Rated Voltage: | 220-250V |
| Fault Rating: | 30mA |
| Tripping Speed: | 40mS (Typical) |
| Latching Type: | Mechanical (Passive) |
| Max Load: | 3120 watts 240V AC |
| Terminal: | L, N, E (Dual Earth) |
| Nature of Supply: | AC |
| No. Of Outlets |
4 |
| Max Installation Altitude: | 2000m |
| Min Switch Contact Gap: | 3mm |
| Min Wall Depth: | 35mmm |
| Cable Capacity: | 3 x 2.5mm / 3 x 4.0mm / 2 x 6.0mm |
| Nature of Supply: | AC |
| Operational Testing: | 30,000 |
| Ambient Operating Tempreture: | -5℃ to 40℃, 24 Hour average not exceeding 35℃ |
| Standards: | BS7288:1990 / BS1363-2 |
