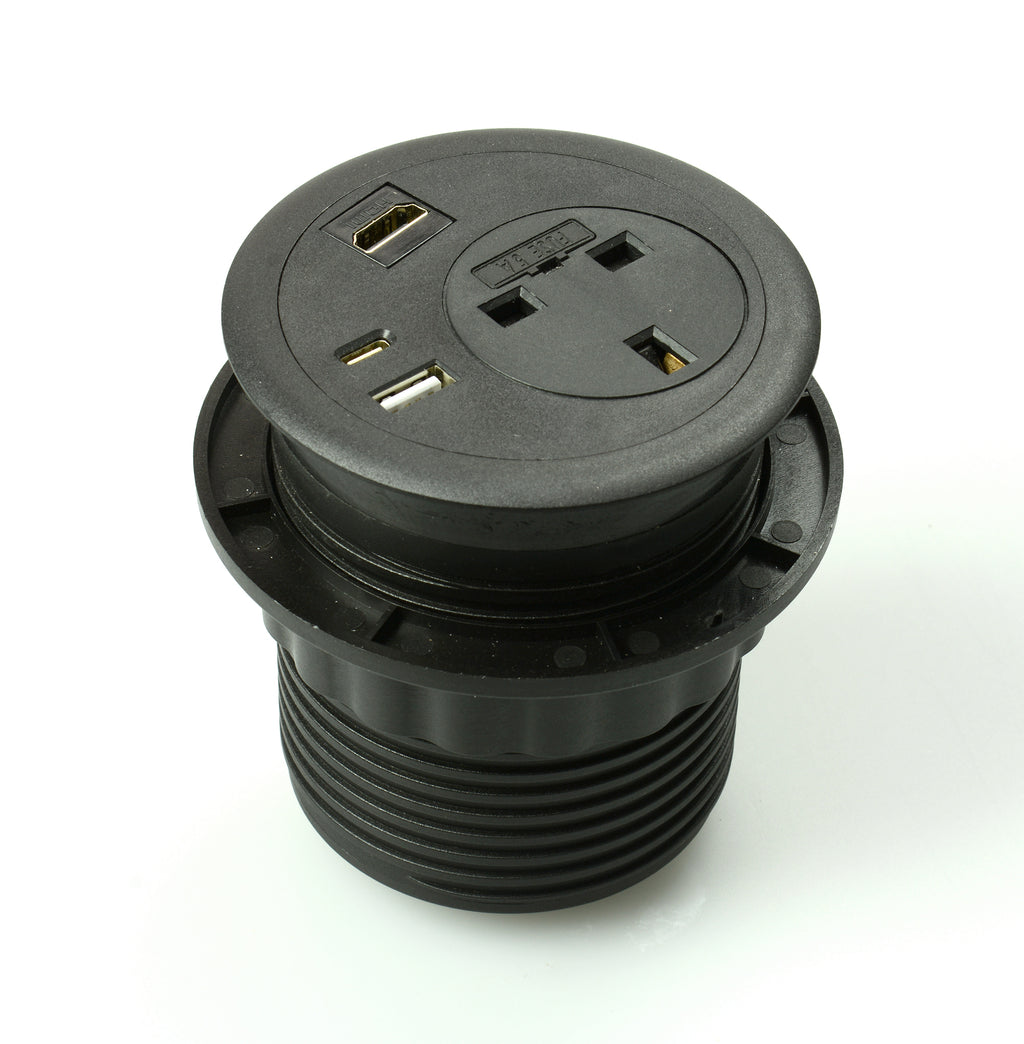

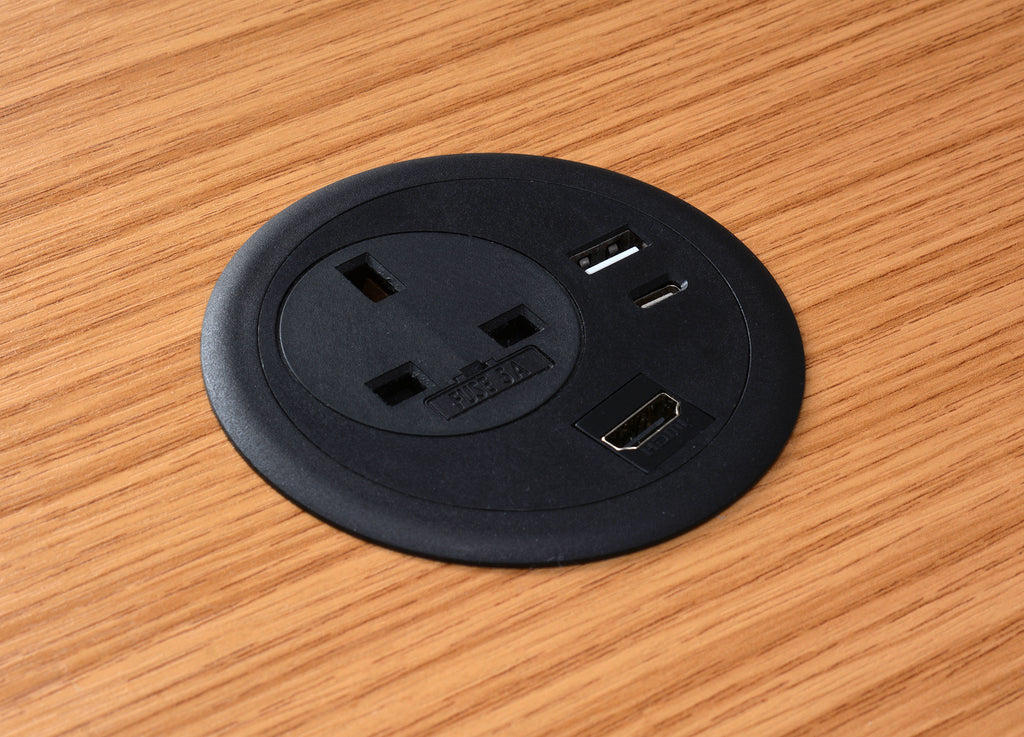

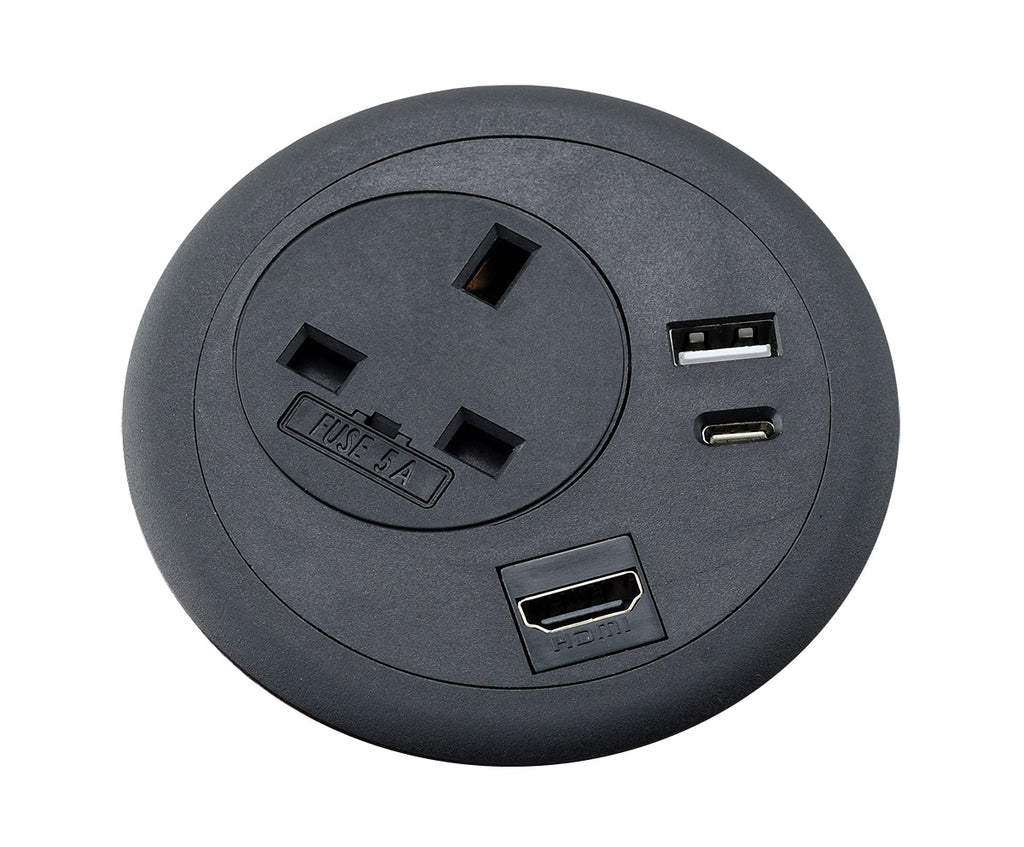

- 80mm desk grommet finished in black
- Standard 80mm Cut out
- Type A and C USB smart chargers as standard
- HDMI module in media slot (interchangeable)
- 1 x UK power socket fused at 5A
- 360 degree socket rotation

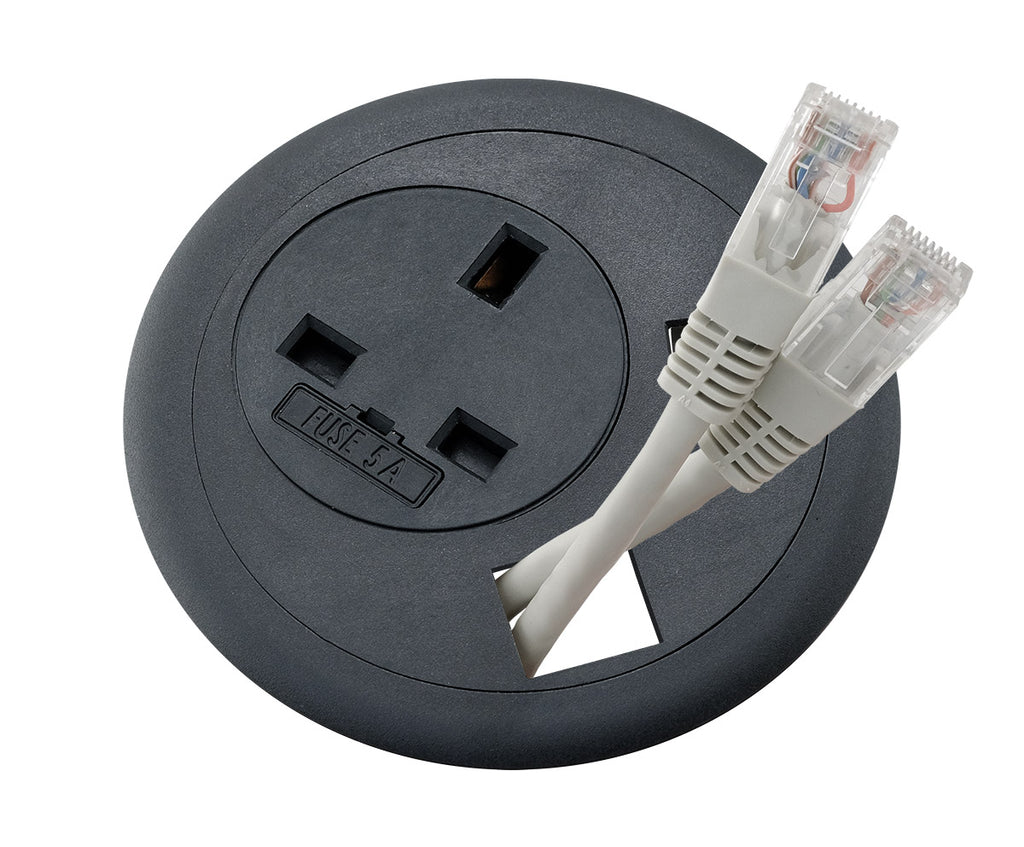

- Media slot can double as a cable pass through to desktop
- Securely held in place with a screw on Locking ring
- Overall unit depth is 80mm
- Male 3 pin power connector
Powered by a 3 pin power connector, the Power Grommet is compatible with Power start leads (please select your required length when ordering), for Power start leads longer than 5m please click here.
Please note:
- Select your required Power start lead length when ordering.
- Power grommet not suitable for screed and concrete floors.
| Model: | PGB80/HDMI/ACUSB |
|---|---|
| Colours: | Black |
| Cutout Dia: | 80mm |
| USB Ports: |
Type A & C USB Smart Charger |
| Media Slot: | HDMI Module |
| Construction: | PVC Extrusion, PVC Socket & Fascias |
| Fuse Rating: | 5A |
| Fuse Size/Type: | 20mm Ceramic Fuse |
| Above Desk: | 2.9mm / Diameter: 93.2 |
| Min/Max desk Clearance: | 10mm - 70mm |
| Above Desk Clearance: | 2mm |
| Below Desk Clearance: | 80mm |
| Usable Desk Depths: | 20mm - 70mm |
| Mains Connector: | 3 Pin Power Connector |
| Conformity: | BS 5733 |
| USB Type A Charger: | QC 3.0, 2V/5A, 5V/3A, 9V/2A |
| USB Type C Charger: | PD, 2V/5A, 5V/3A, 9V/2A |
| Compliance: | BS6396:2008 / UL94VO rated / PA66 |
