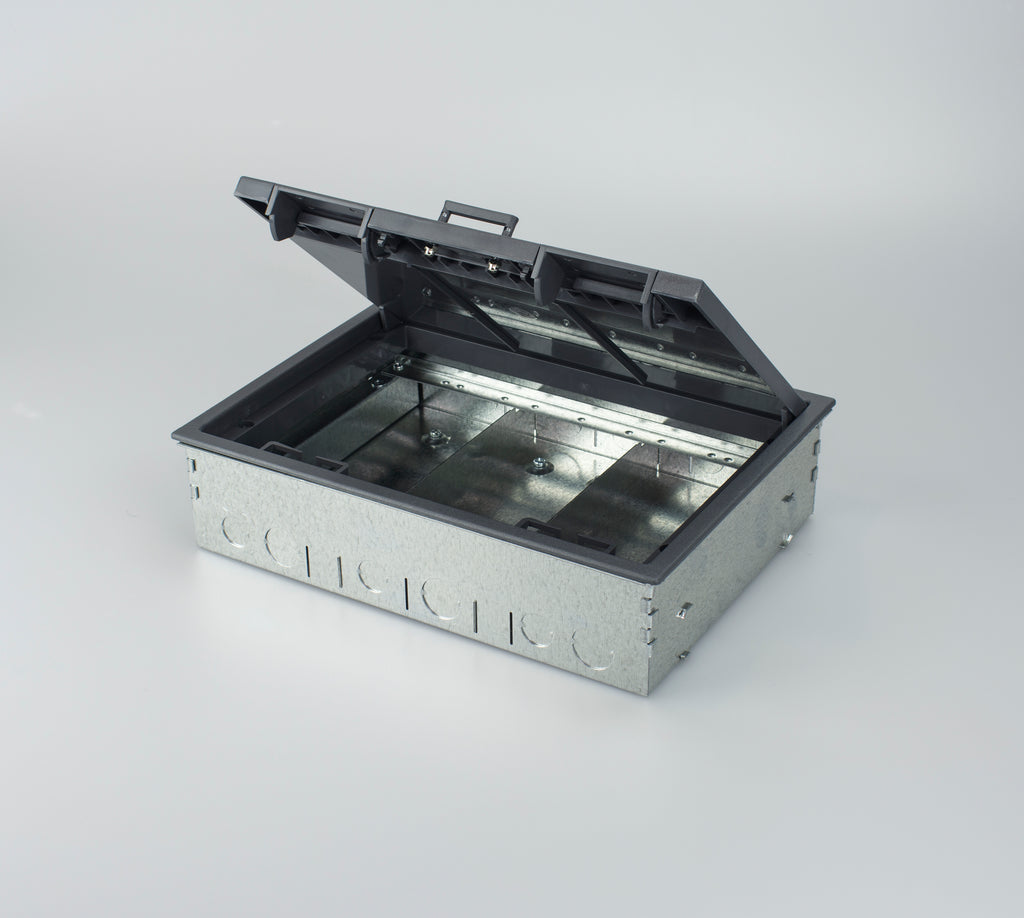

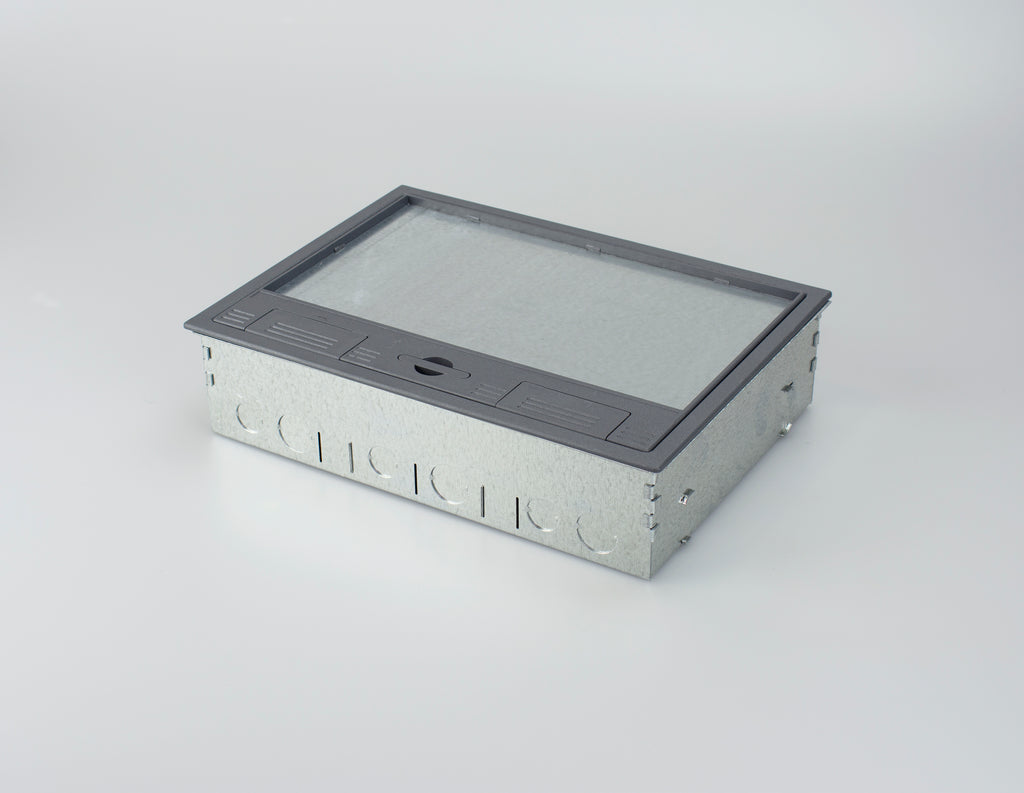

- Floor box manufactured from galvanised steel
- 25 & 20mm knockouts to accept flexible conduit
- Designed specifically to accept ST0291/RCD Twin RCD Protected Sockets
- Frame & lid moulded from high impact polycarbonate, colour equivalent: RAL7031
- Galvanised lid insert for strength
- Easy grip recessed lifting handle
- Compact design 303 x 221mm floor cut-out
- Designed to accept 3 accessory plates
- Large range of accessory plates, colour equivalent: RAL7035
- Special plates available to order
- Clean Earth Sockets available
- IP Rating: IP20
- ABS Frame & Lid fire rating UL94 HB Halogen Free
- Fire rating Euro Class E-F Class 4 None Tested
- ABS Plastic Frame & Lid Load Test 550 KG
- Steel Frame & Lid Load Test 740 KG
| Model: | TSB3/80 |
|---|---|
| Floor Cut Out: | 303mm x 221mm |
| Floor Box Depth: | 80mm |
| Plug Top Clearance: | 34mm |
| Overall Frame & Lid: | 313mm x 230mm |
| Frame Lid Recess: | 6mm |
| Accessory Plate: | 185mm x 89mm |
Accessory Plate Options
 ST0283Blank Plate |
 ST02844 Way Data Plate |
 ST0284/W4 way Wave Data Plate |
 ST0286F2 x 1 Gang Accessory Plate |
 ST0286/1FMFlush 1 Gang Accessory Plate |
 ST0287FStandard Twin Accessory Plate |
 ST0287/FMFlush Twin Accessory Plate |
 ST02896 Way Data Plate |
 ST0291Twin Switched Sockets |
 ST02942 x 50mm Euro Module Plate |
 ST0295Triple Unswitched Sockets |
 ST0291/USBTwin Sockets with USB |
 ST0291/RCD/GBTwin RCD Protected Sockets |
 ST0287FM/RCDFlush Mounted Twin RCD Protected Sockets |
