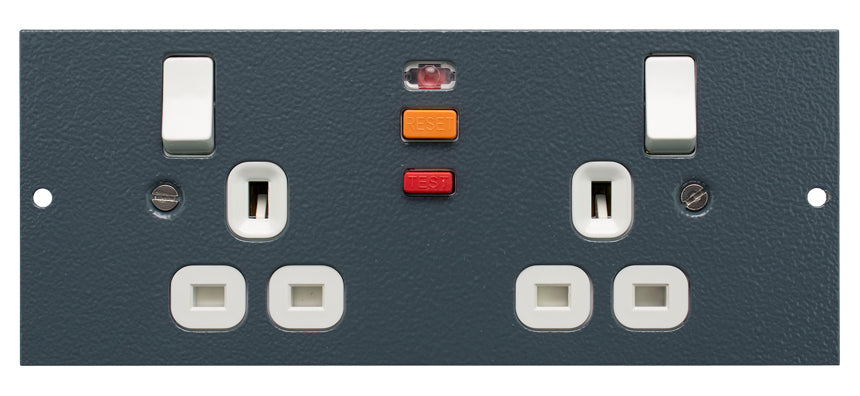

ST0300/RCD/BG - Twin Switched RCD Protected Sockets

Tass FloorboxSKU: ST0300/RCD/BG
filler

Price:
£56.25(Ex. Vat)

Description

Description

Specifications

Downloads

• Twin switched RCD protected 13A socket plate
• Made from galvanised steel
• Leatherette texture power coated galvanised steel
• Dark grey RAL 7031

Note: Only suitable for Floor boxes of 80mm Depths of above.

Model: ST0300/RCD/BG
Dimensions: 185mm x 76mm
Colour: Dark Grey (RAL 7031)
Suitability: TFB2s, TFB3s, TSB3s
Socket Depth: 32mm
Socket Material: Thermoset (Moulded)
Outlets: 2
Indicator Lamp: Yes
Switched: Yes (Single Pole)
Rocker Finish: White Moulded
Rated Current: 13A max.
Rated Frequency: 50-60Hz
Rated Voltage: 250V
Fault Rating: 30mA
Tripping Speed: 40mS (Typical)
Latching Type: Mechanical (Passive)
Max Load: 3120 watts 240V AC
Terminal: L, N, E (Dual Earth)
Nature of Supply: AC
IP Rating: IP2X
Max Installation Altitude: 2000m
Min Switch Contact Gap: 3mm
Min Wall Depth: 35mm
Cable Capacity: 5mm
Nature of Supply: AC
Operating Testing: 30,000
Ambient Operating Tempreture: -5 to 40, 24 Hour average not exceeding 35
Standards: BS7288:1990 / BS1363-2
